AOZ5048QI The AOZ5048QI is a high-efficiency synchronous buck DrMOS power module from Alpha & Omega Semiconductor. It operates with a 4.5V to 25V power supply range and can deliver up to 35A peak output current.
Mfr Part #:

AOZ5048QI

Available from 1 distributors
Mfr Name: Alpha&Omega Semicondu Ctor
Alpha&Omega Semicondu Ctor
The AOZ5048QI is a high-efficiency synchronous buck DrMOS power module from Alpha & Omega Semiconductor. It operates with a 4.5V to 25V power supply range and can deliver up to 35A peak output current.
✓ Total Stock: 300 pcs
$ Price Range: $0.16

AOZ5048QI Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
300 pcs
On Request
300 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AOZ5048QI Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Operating Voltage
Output Configuration
SVHC Present
Supplier Device Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

AOZ5048QI Description

Short technical summary and product information.

The AOZ5048QI is a high-performance DrMOS power module designed for synchronous buck applications. It integrates two asymmetrical MOSFETs and a driver, optimized for efficiency and low conduction loss. The module supports a wide power supply range of 4.5V to 25V and a driver supply range of 4.5V to 5.5V.



Key features include a peak output current of up to 35A and a switching frequency up to 2MHz. It offers Tri-state PWM input compatibility and single FCCM pin control for various operating modes like Shutdown, Diode Emulation, and CCM. The integrated bootstrap Schottky diode simplifies the design.

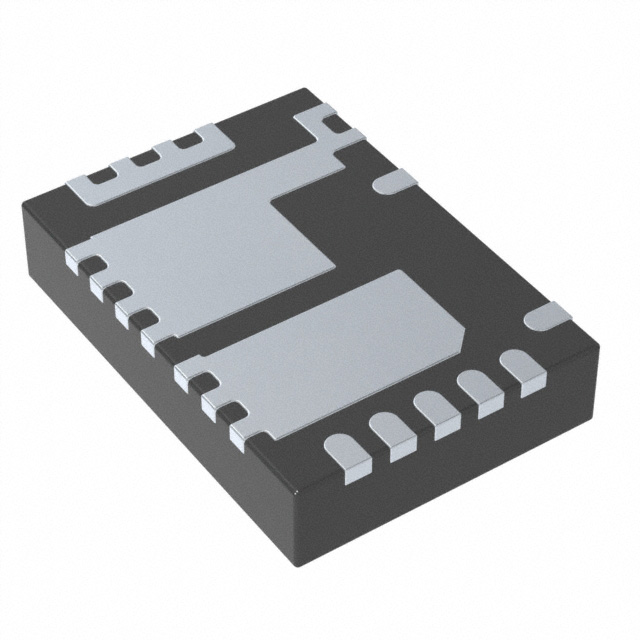

Packaged in a compact 3.5mm x 5mm QFN-24L package, the AOZ5048QI is designed to minimize parasitic inductance for reduced EMI. Its pinout is optimized for low-inductance routing. This power module is suitable for applications such as servers, notebook computers, VRMs for motherboards, point-of-load DC/DC converters, memory and graphic cards, and video gaming consoles.

AOZ5048QI Quick Information

Product Type: DrMOS Power Module
Canonical Name: AOZ5048QI DrMOS Power Module
Subcategory: DrMOS Power Module

AOZ5048QI Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AOZ5048QI Estimated Pricing

Qty Low High
1+ $0.16 $0.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

AOZ5048QI Features

  • High efficiency synchronous buck power stage.
  • 4.5V to 25V power supply range.
  • Up to 35A peak output current.
  • Compact 3.5mm x 5mm QFN-24L package.
  • Up to 2MHz switching operation.

AOZ5048QI Applications

  • Ideal for server power supplies.
  • Suitable for notebook computer designs.
  • Used in motherboard VRM circuits.
  • Point-of-load DC-DC converters.
  • Memory and graphics card power.

AOZ5048QI FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the AOZ5048QI?

The power supply range is 4.5V to 25V, and the driver supply range is 4.5V to 5.5V.

What is the peak output current of the AOZ5048QI?

The peak output current is 35A.

What is the switching frequency of the AOZ5048QI?

The switching frequency range is 200kHz to 2MHz.

What is the operating temperature range of the AOZ5048QI?

The operating temperature range is -40°C to 85°C.

What package is the AOZ5048QI available in?

The AOZ5048QI is available in a 24-PowerTFQFN module package (24-QFN 3.5x5).

Is the AOZ5048QI a synchronous buck converter?

Yes, it features synchronous rectification and uses a buck topology.

What is the output configuration of the AOZ5048QI?

The output configuration is positive, with a single output.
