Mfr Part #:

AOZ2263VQI-01

Mfr Name: AOS

The AOS AOZ2263VQI-01 is a high-efficiency synchronous buck regulator designed for 4V to 28V input. It delivers up to 12A continuous output current with adjustable voltage.

✓ Total Stock: 4,933 pcs

$ Price Range: $1.08

AOZ2263VQI-01 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	3,200 pcs On Request	3200 pcs	On Request	1	On Request	On Request	21+	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	1,733 pcs On Request	1733 pcs	On Request	1	On Request	On Request	21+	On Request	On Request

AOZ2263VQI-01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	AOS
Mounting Type	Surface Mount
Operating Temperature	-40°C to 85°C
Output Current	12A
Output Voltage	1.05V to 1.125V
Tape & Reel	Yes
Voltage	4V to 28V

View Similar Products (0)

AOZ2263VQI-01 Description

Short technical summary and product information.

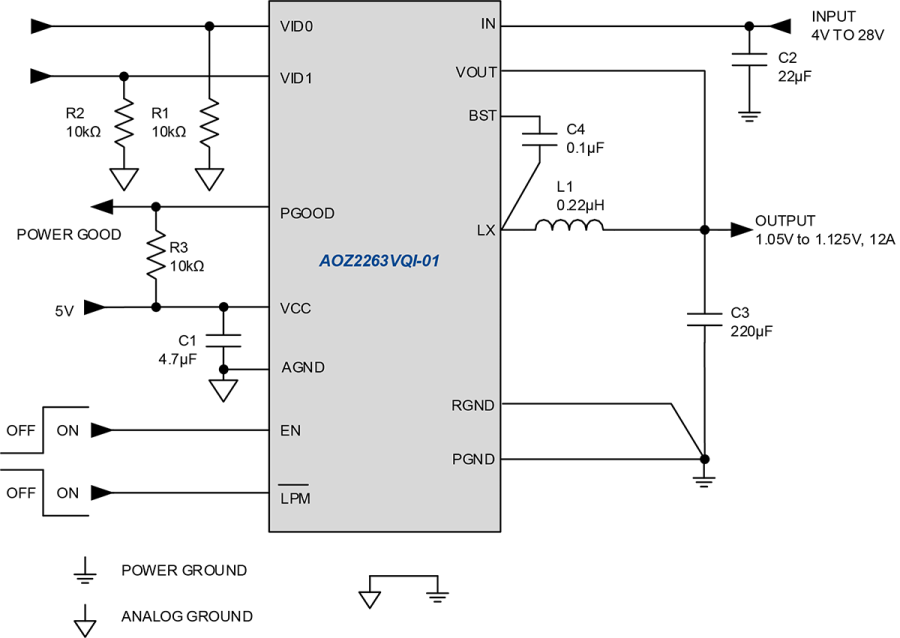

The AOZ2263VQI-01 from AOS is a versatile DC-DC synchronous buck regulator capable of operating from a wide 4V to 28V input bus. This device is engineered to provide a substantial 12A of continuous output current, with an output voltage that can be precisely adjusted between 1.05V and 1.125V using VID0 and VID1 control signals.

It utilizes a proprietary constant on-time PWM control with input feed-forward, ensuring rapid transient response and stable switching frequency across the input voltage range. Key protection features include VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown.

The regulator is housed in a thermally enhanced 4mm x 4mm QFN-22L package, suitable for surface mount applications. It operates reliably within an ambient temperature range of -40°C to +85°C.

Applications for the AOZ2263VQI-01 include portable computers, servers, graphics cards, set-top boxes, LCD TVs, cable modems, and point-of-load DC-DC converters in telecom and datacom equipment.

AOZ2263VQI-01 Quick Information

Product Type: Synchronous Buck Regulator

Series: AOZ2263

Canonical Name: 28V/12A VID Control Synchronous EZBuck Regulator

Subcategory: DC-DC Switching Regulators

AOZ2263VQI-01 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Pb-free plating

AOZ2263VQI-01 Estimated Pricing

Qty	Low	High
1+	$1.08	$1.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

AOZ2263VQI-01 Features

Wide 4V to 28V input voltage range.
12A continuous output current capability.
Adjustable output voltage from 1.05V to 1.125V.
Constant on-time PWM control with feed-forward.
Thermally enhanced 4mm x 4mm QFN-22L package.

AOZ2263VQI-01 Applications

Suitable for portable computers.
Used in server and desktop PCs.
Ideal for graphics cards.
Applicable to set-top boxes and LCD TVs.
Used in telecom and datacom equipment.

AOZ2263VQI-01 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the AOZ2263VQI-01?

The input voltage range is 4V to 28V.

What is the output current capability?

The continuous output current is 12A.

What is the output voltage range?

The output voltage is adjustable from 1.05V to 1.125V.

What is the switching frequency?

The typical switching frequency is 600kHz.

What package does the AOZ2263VQI-01 come in?

It is housed in a QFN4x4-22L package measuring 4mm x 4mm x 0.9mm.

What is the operating temperature range?

The operating ambient temperature range is -40°C to 85°C.

What is the soft start time?

The typical soft start time is 1.5ms.
