| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage |

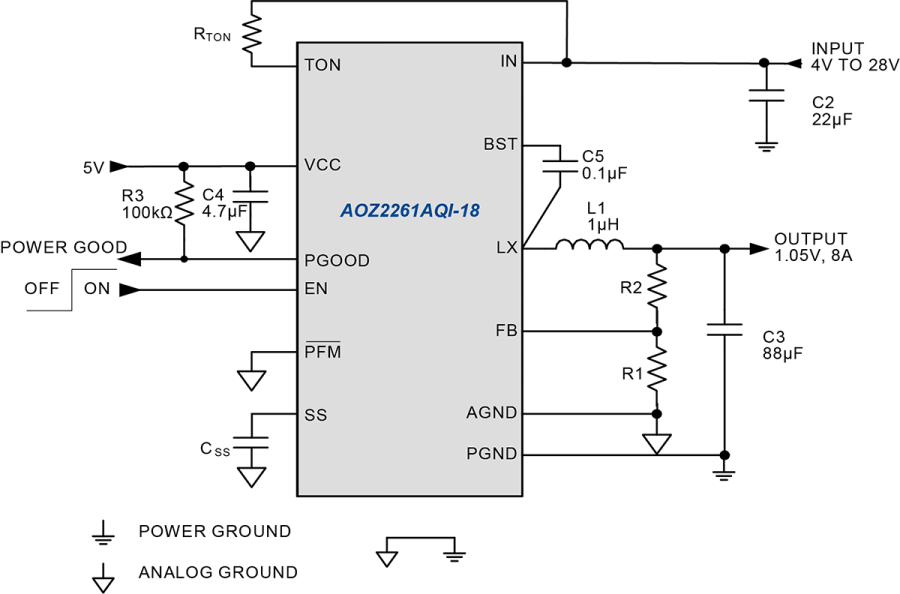

The AOZ2261AQI-18 from AOS is a synchronous buck regulator designed for high-efficiency DC/DC conversion. It operates with an input voltage range of 4V to 28V and can deliver up to 8A of continuous output current. The output voltage is adjustable down to 0.8V with an accuracy of ±1.0%.
This regulator features a constant on-time PWM control with input feed-forward for fast transient response. It includes internal NFETs with low on-resistance (30mΩ high-side, 12mΩ low-side). The on-time can be programmed up to 1.3µs. Protection features include cycle-by-cycle current limit, short-circuit protection, over-voltage protection, and thermal shutdown.
The AOZ2261AQI-18 is housed in a thermally enhanced 4mm x 4mm QFN-23L package. It operates over an ambient temperature range of -40°C to +85°C. This device is suitable for applications such as portable computers, servers, graphics cards, and point-of-load DC/DC converters.
Key features include selectable PFM light-load operation, ceramic capacitor stability, adjustable soft start, ripple reduction, and a Power Good output signal. The integrated bootstrap diode simplifies the design.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4V to 28V.
The maximum continuous output current is 8A.
The output voltage is adjustable down to 0.8V.
The operating temperature range is -40°C to +85°C.
The AOZ2261AQI-18 is supplied in a 4mm x 4mm QFN-23L package.
