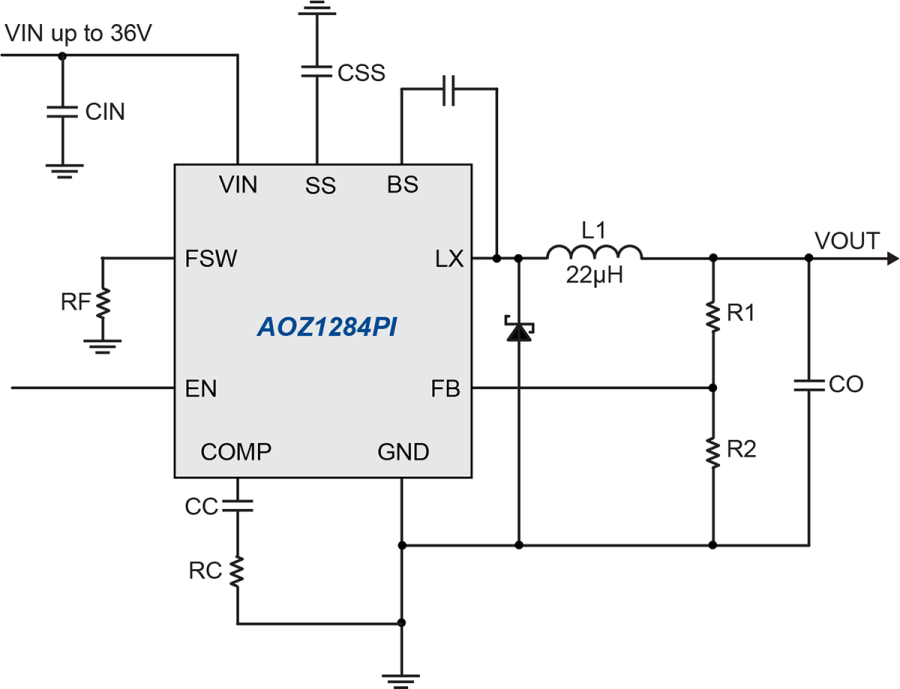

The AOZ1284PI from AOS is a versatile 4A simple buck regulator, part of the EZBuck™ family. It operates from an input voltage range of 3.0V to 36V, providing a continuous output current of up to 4A. The output voltage is adjustable from 0.8V down to 30V, making it suitable for a variety of power conversion needs.
This regulator integrates a 50mΩ N-channel high-side power MOSFET and offers high efficiency up to 95%. The switching frequency can be set externally from 200kHz to 2MHz, allowing for system design optimization. It includes essential protection features such as cycle-by-cycle current limit, short-circuit protection, over-voltage protection, and over-temperature protection.
The AOZ1284PI is available in a thermally-enhanced EPAD SO-8 package, suitable for surface mount applications. Its adjustable soft-start feature helps manage inrush current during power-up. This component is well-suited for point-of-load DC/DC conversion, automotive applications, set-top boxes, LCD monitors, and telecom/networking equipment.
Key electrical characteristics include a wide input voltage range (3V-36V), a maximum output current of 4A, and an adjustable output voltage (0.8V-30V). The adjustable switching frequency and external compensation enable fine-tuning for stability and performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.84 | $1.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AOZ1284PI operates from a 3.0V to 36V input voltage range.
The AOZ1284PI provides up to 4A of continuous output current.
The output voltage of the AOZ1284PI is adjustable from 0.8V to 30V.
The AOZ1284PI achieves up to 95% efficiency.
The AOZ1284PI operates within an ambient temperature range of -40°C to +85°C.
The AOZ1284PI is supplied in a thermally-enhanced EPAD SO-8 package.
