| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Efficiency | |
| Mounting Type | |
| Output Current | |
| Output Voltage | |
| Tape & Reel |

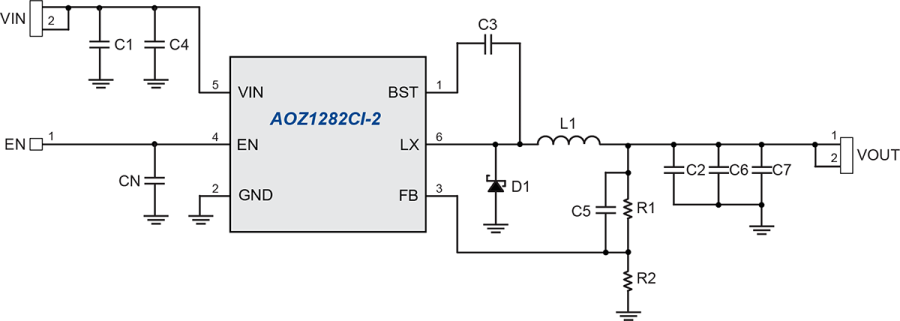

The AOZ1282CI is a high-efficiency, 1.2A simple buck regulator from Alpha Components, designed for flexibility in various applications. It operates within a wide input voltage range of 4.5V to 36V and can deliver up to 1.2A of continuous output current. The output voltage is adjustable down to 0.8V, offering design flexibility.
This regulator features a fixed 450kHz PWM operation, which helps in reducing inductor size. Key electrical specifications include an internal NMOS with 420mΩ Rds(on), up to 95% efficiency, and internal compensation. It also incorporates internal soft start and cycle-by-cycle current limit protection.
The AOZ1282CI is housed in a compact SOT23-6L package, suitable for surface mount applications. Its operating temperature range is -40°C to +85°C ambient. Protection features include short-circuit protection and thermal shutdown.
Applications for this buck regulator include telecom/networking/datacom equipment, point-of-load DC/DC conversion, set-top boxes, cable modems, DVD drives, HDDs, LCD monitors, and TVs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AOZ1282CI operates from a 4.5V to 36V input voltage range.
The AOZ1282CI provides up to 1.2A of continuous output current.
The output voltage is adjustable down to 0.8V.
The AOZ1282CI features a fixed 450kHz PWM operation.
The AOZ1282CI is available in a SOT23-6L package.
The operating ambient temperature range for the AOZ1282CI is -40°C to +85°C.
