| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29 pcs
|
29 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Industrial Grade | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The AOTL66608 is a 60V N-Channel MOSFET utilizing Alpha & Omega Semiconductor's AlphaSGT technology. It is designed for high-current applications such as battery protection and power distribution. The device features a continuous drain current of 400A at Tc=25°C and 73.5A at Ta=25°C, with a pulsed drain current capability of 1300A. The drain-source on-resistance is extremely low: 0.85mΩ maximum at Vgs=10V and 20A, and 1.1mΩ maximum at Vgs=6V and 20A. Typical Rds(on) is 0.7mΩ at 10V.
Switching performance is excellent with a total gate charge of 205nC typical (300nC maximum) and fast switching times: turn-on delay 33ns, rise time 36ns, turn-off delay 140ns, fall time 65ns. The device is 100% tested for UIS and gate resistance, with an avalanche energy rating of 1354mJ. The body diode has a reverse recovery time of 50ns and recovery charge of 265nC.

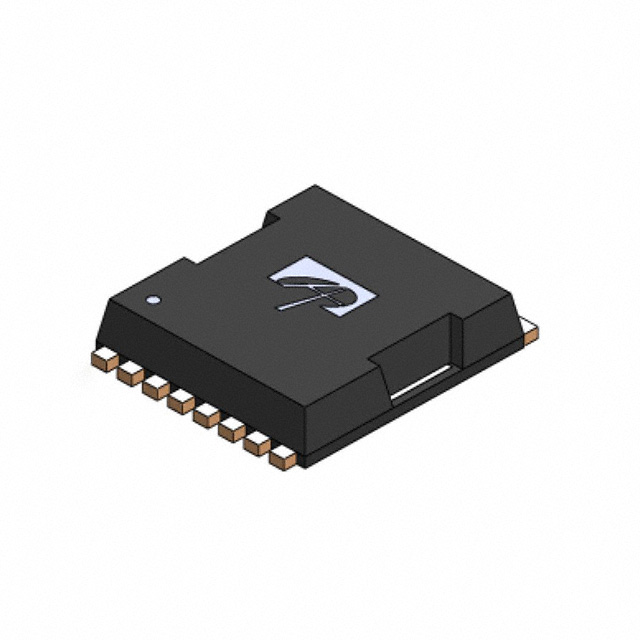

The MOSFET is housed in a surface-mount 8-PowerSFN package (TOLLA supplier package) with a junction-to-case thermal resistance of 0.3°C/W maximum, allowing a maximum power dissipation of 500W at Tc=25°C. The operating junction temperature range is -55°C to 175°C. The device is RoHS3 and Halogen-Free compliant, and is supplied in tape and reel packaging with a minimum order quantity of 2000 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.49 | $8.49 |
| 10+ | $5.77 | $5.77 |
| 50+ | $4.60 | $4.60 |
| 100+ | $4.23 | $4.23 |
| 500+ | $4.15 | $4.15 |
| 2,000+ | $3.39 | $3.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage rating is 60V.
The continuous drain current is 400A at Tc=25°C and 73.5A at Ta=25°C.
The maximum on-resistance is 0.85mΩ at Vgs=10V, Id=20A, and 1.1mΩ at Vgs=6V, Id=20A.
The operating junction temperature range is -55°C to 175°C.
It is packaged in an 8-PowerSFN surface-mount package, also known as TOLLA supplier package.
Yes, the device is RoHS3 and Halogen-Free compliant as stated in the datasheet.
The total gate charge is 205nC typical and 300nC maximum at Vgs=10V.
