| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

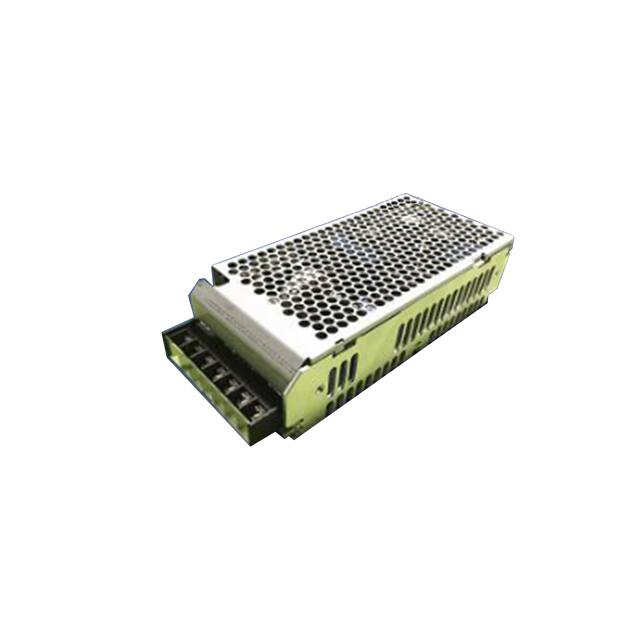

The ETA AOPS50-48 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 53W with a current rating of 1.1A and an efficiency of 85%.
This converter features adjustable output and universal input, making it versatile for various power supply needs. It has an isolation voltage of 3kV and operates within a temperature range of -10°C to 70°C with derating. The dimensions are 120.0mm x 81.2mm x 31.5mm.
Mounting is achieved via chassis mount. The unit is approved by CB, CE, cUL, and UL, ensuring compliance with safety standards. It has a single output and is RoHS3 compliant.
The converter operates reliably between -10°C and 70°C, with power derating applied as required.
The unit provides a maximum output power of 53W at 48V and 1.1A.
The device utilizes a chassis mount configuration for secure installation.
Yes, the converter features universal input capability for flexible deployment.
The unit provides 3kV of isolation voltage to protect connected circuitry.
