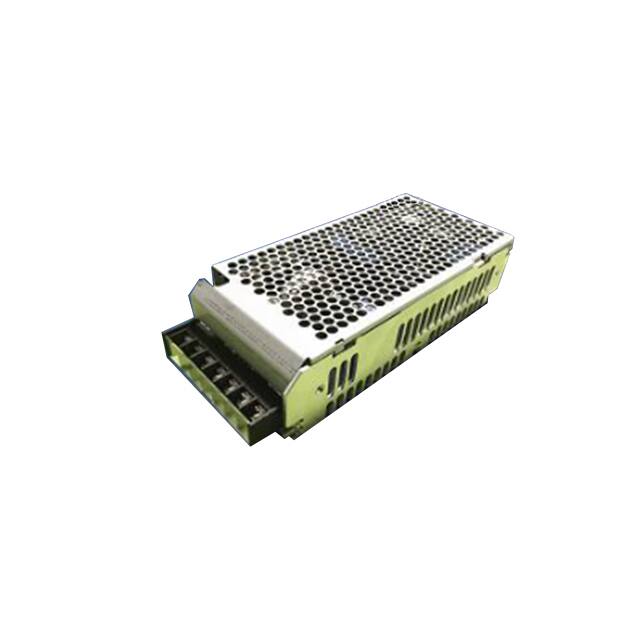

AOPS50-12 AOPS50-12 is an enclosed AC DC converter by ETA delivering 12V at 4.3A (52W). It features chassis mount, 3kV isolation, adjustable output, and universal input.
Mfr Part #:

AOPS50-12

Mfr Name: ETA
ETA
AOPS50-12 is an enclosed AC DC converter by ETA delivering 12V at 4.3A (52W). It features chassis mount, 3kV isolation, adjustable output, and universal input.
Stock on Request

AOPS50-12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Type
Voltage
Width
View Similar Products (0)

AOPS50-12 Description

Short technical summary and product information.

The AOPS50-12 is an enclosed AC DC converter manufactured by ETA. It provides a single regulated output of 12V DC at 4.3A, with a total output power of 52W. The converter operates with universal input and includes an adjustable output feature.



This unit offers 3kV input-to-output isolation and is designed for chassis mount installation. It is approved to CB, CE, cUL, and UL safety standards, making it suitable for ITE (commercial) applications. The operating temperature range is -10°C to 70°C with derating, and the typical efficiency is 82%.



The converter measures 120.0mm x 81.2mm x 31.5mm, providing a compact enclosed form factor. Features include universal input and adjustable output for design flexibility.

AOPS50-12 Quick Information

Product Type: AC DC Converter
Canonical Name: AOPS50-12 AC/DC Converter
Subcategory: Enclosed

AOPS50-12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AOPS50-12 Features

  • 12V DC output at 4.3A 52W.
  • Enclosed chassis mount package.
  • 3kV input to output isolation.
  • Adjustable output with universal input.
  • CB, CE, cUL, UL safety approved.

AOPS50-12 Applications

  • Ideal for commercial ITE equipment.
  • Used in industrial control systems.
  • Suitable for telecommunications equipment.
  • Power for test and measurement instruments.
  • Applied in automation machinery.

AOPS50-12 FAQs

3 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the AOPS50-12?

The output is 12V DC at 4.3A.

What is the operating temperature range?

The operating temperature range is -10°C to 70°C with derating.

What certifications does the AOPS50-12 hold?

It is approved to CB, CE, cUL, and UL standards.
