| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

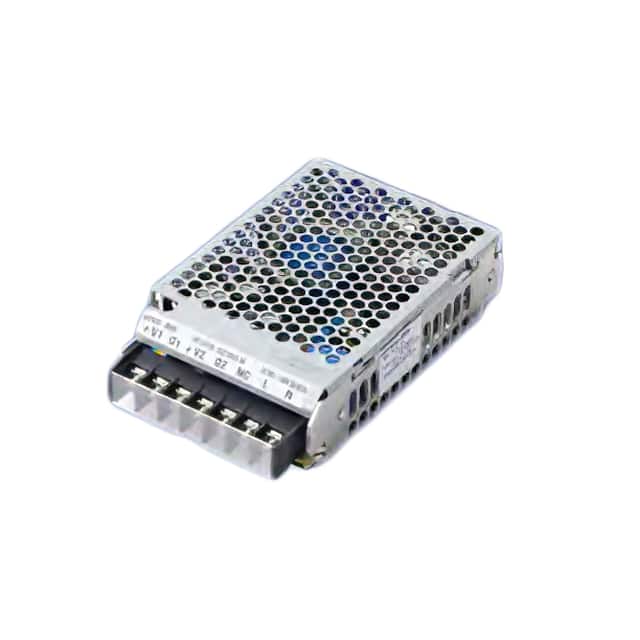

The ETA AOPS30-12 is an enclosed AC DC converter with a power rating of 30W. It provides a single output voltage of 12V at 2.5A. This converter features a universal input and an efficiency of 78%.
Designed for ITE (Commercial) applications, the AOPS30-12 has a chassis mount type. Its dimensions are 99.0mm in length, 82.0mm in width, and 36.0mm in height. The operating temperature range is from -10°C to 70°C with derating. It also offers an isolation voltage of 3 kV.
This model is listed as RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1. It is suitable for various commercial electronic equipment designs requiring a stable AC to DC power conversion.
The AOPS30-12 provides a single 12V output at 2.5A.
The AOPS30-12 is rated for 30W of output power.
The AOPS30-12 has an efficiency of 78%.
The AOPS30-12 provides 3kV isolation.
The AOPS30-12 operates from -10°C to 70°C with derating.
The AOPS30-12 is designed for chassis mount installation.
The AOPS30-12 measures 99.0mm in length, 82.0mm in width, and 36.0mm in height.
