| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

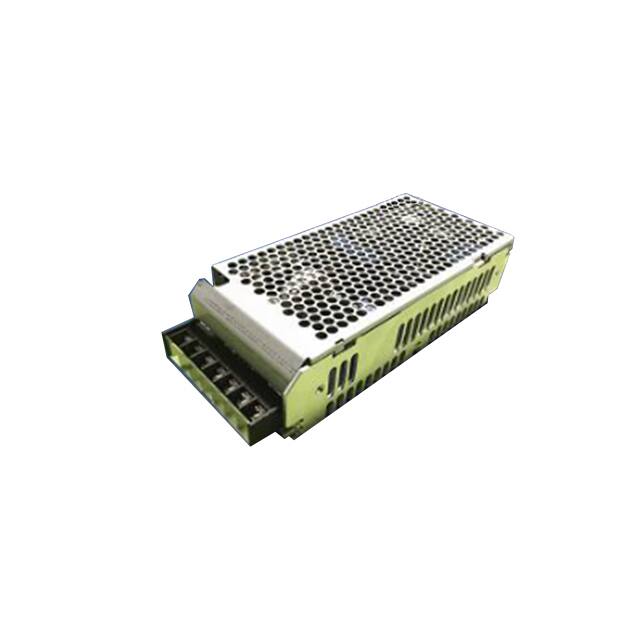

The ETA AOPS150-24 is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It offers a power output of 151W and a voltage of 24V, with a current rating of 6.3A.
Key electrical specifications include an efficiency of 88% and universal input capability. The unit is designed for chassis mounting and operates within a temperature range of -10°C to 70°C with derating. It has a voltage rating of 3 kV and features a single output.
Mechanical dimensions are 175.0mm in length, 81.2mm in width, and 45.0mm in height. The converter is approved by CE and cURus agencies, indicating compliance with relevant safety standards.
-10°C to 70°C with derating.
Chassis mount with enclosed design.
24V.
88%.
CE, cURus.
1 output.
175.0mm x 81.2mm x 45.0mm (6.89" x 3.20" x 1.77").
