AON6924 The AON6924 is a 30V dual asymmetric N-channel MOSFET in a half-bridge configuration, designed for synchronous buck converters. It features low on-resistance and logic level gate drive.
Mfr Part #:

AON6924

Available from 1 distributors
Mfr Name: Alpha&Omega Semicondu Ctor
Alpha&Omega Semicondu Ctor
The AON6924 is a 30V dual asymmetric N-channel MOSFET in a half-bridge configuration, designed for synchronous buck converters. It features low on-resistance and logic level gate drive.
✓ Total Stock: 8,745 pcs
$ Price Range: $0.33

AON6924 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
8,745 pcs
On Request
8745 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AON6924 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Drain to Source Voltage (Vdss)
FET Feature
Gate Charge (Qg) (Max) @ Vgs
Industrial Grade
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power
Rds On (Max) @ Id, Vgs
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Vgs(th) (Max) @ Id
View Similar Products (0)

AON6924 Description

Short technical summary and product information.

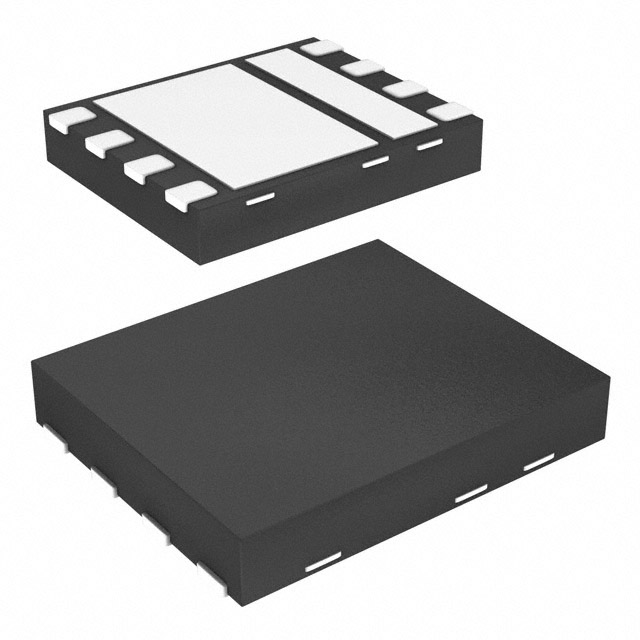

The AON6924 is a 30V dual asymmetric N-channel MOSFET from Alpha & Omega Semiconductor, housed in a compact 8-WDFN exposed pad package (8-DFN-EP 5x6). It integrates two specialized MOSFETs optimized for synchronous buck power stages: Q1 (high-side) and Q2 (low-side) with integrated Schottky diode. The device is 100% UIS and Rg tested for ruggedness.



Key electrical specifications include a drain-source voltage rating of 30V. At a case temperature of 25°C, Q1 can handle 60A continuous drain current and Q2 up to 85A. The on-resistance is exceptionally low: Q1 maximum 5.2mOhm and Q2 maximum 1.6mOhm at Vgs=10V. Logic level gate drive is supported with Rds(on) specified at Vgs=4.5V. Gate charge is 21nC total, enabling fast switching with typical turn-on delay of 5ns and turn-off delay of 20ns.



The device is surface mount and operates over a junction temperature range of -55°C to 150°C. It is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited). The AON6924 is well suited for compact DC/DC converter applications where board space and efficiency are critical.

AON6924 Quick Information

Product Type: Dual N-Channel MOSFET Array
Canonical Name: AON6924 - 30V Dual Asymmetric N-Channel MOSFET
Subcategory: Dual N-Channel

AON6924 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Moisture Sensitivity Level 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

AON6924 Estimated Pricing

Qty Low High
3,000+ $0.33 $0.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

AON6924 Features

  • 30V drain-source voltage rating.
  • Low on-resistance: 5.2mOhm (Q1) and 1.6mOhm (Q2).
  • Logic level gate drive (Vgs=4.5V).
  • Dual asymmetric N-channel in half-bridge.
  • Surface mount 8-DFN package.

AON6924 Applications

  • Ideal for synchronous buck DC/DC converters.
  • Used in compact power supply designs.
  • Suitable for high-efficiency voltage regulation.
  • Designed for optimal board space utilization.

AON6924 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the AON6924?

The drain-source voltage rating is 30V.

What package does the AON6924 come in?

It is available in an 8-WDFN exposed pad package (8-DFN-EP 5x6).

What is the operating temperature range?

The junction operating temperature range is -55°C to 150°C.

Is the AON6924 RoHS compliant?

The RoHS status is listed as RoHS3 Compliant, but this is unverified.

What is the continuous drain current rating?

At TA=25°C, Q1 is rated for 15A and Q2 for 28A. At TC=25°C, Q1 is rated for 60A and Q2 for 85A.

Does the AON6924 support logic level gate drive?

Yes, it has a logic level gate feature with Rds(on) specified at Vgs=4.5V.

What is the on-resistance of the AON6924?

At Vgs=10V, Q1 maximum is 5.2mOhm and Q2 maximum is 1.6mOhm. At Vgs=4.5V, Q1 maximum is 7.8mOhm and Q2 maximum is 1.9mOhm.
