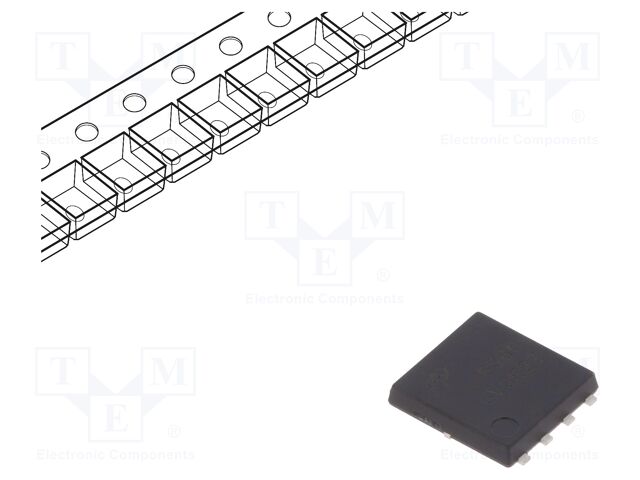

AON6380 AON6380 is a 30V N-Channel MOSFET from Alpha & Omega Semiconductor. It features a low on-resistance of 6.8mΩ max at VGS=10V and a continuous drain current of 24A at 25°C.
Mfr Part #:

AON6380

Available from 1 distributors
Mfr Name: Alpha&Omega Semicondu Ctor
Alpha&Omega Semicondu Ctor
AON6380 is a 30V N-Channel MOSFET from Alpha & Omega Semiconductor. It features a low on-resistance of 6.8mΩ max at VGS=10V and a continuous drain current of 24A at 25°C.
✓ Total Stock: 1,804 pcs
$ Price Range: $0.21 - $0.22

AON6380 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,804 pcs
On Request
1804 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AON6380 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Channel Type
Halogen Free
Industrial Grade
Lead Style
Medical Grade
Military Grade
Mounting Type
SVHC Present
Storage Temperature
Tape & Reel
Technology
Termination Style
View Similar Products (0)

AON6380 Description

Short technical summary and product information.

The AON6380 is a 30V N-Channel MOSFET designed and manufactured by Alpha & Omega Semiconductor. It utilizes Trench Power AlphaMOS (αMOS LV) technology to achieve a low maximum on-resistance of 6.8mΩ at VGS=10V and 10.5mΩ at VGS=4.5V. The device can handle a continuous drain current of 24A at ambient temperatures of 25°C and up to 88A when the case temperature is maintained at 25°C. It is rated for power dissipation up to 5W at 25°C ambient and 36W at 25°C case temperature. The gate threshold voltage ranges from 1.4V minimum to 2.2V maximum, with a typical value of 1.8V. This MOSFET is suitable for DC/DC converters in computing, telecom, and industrial applications. The device is supplied in a DFN 5x6 surface-mount package, available in tape and reel packaging with a minimum order quantity of 3000 pieces. It is RoHS and Halogen-Free compliant, and has a moisture sensitivity level of 1 (unlimited).

AON6380 Quick Information

Product Type: MOSFET
Series: AON6380
Canonical Name: AON6380 N-Channel 30V MOSFET
Subcategory: Single MOSFET

AON6380 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

AON6380 Estimated Pricing

Qty Low High
3,000+ $0.22 $0.22
6,000+ $0.21 $0.21

Estimated market price range - modelled values for guidance only, not live distributor offers.

AON6380 Features

  • 30V drain-source voltage rating.
  • Low on-resistance of 6.8mΩ typical.
  • High continuous drain current up to 88A.
  • Surface-mount DFN 5x6 package.
  • RoHS and Halogen-Free compliant.

AON6380 Applications

  • Used in DC/DC converters for computing.
  • Suitable for isolated telecom converters.
  • Ideal for industrial power supplies.
  • High current switching applications.

AON6380 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the AON6380?

The maximum drain-source voltage (VDS) is 30V.

What is the continuous drain current rating?

At an ambient temperature of 25°C, the maximum continuous drain current is 24A. With the case at 25°C, it can handle up to 88A.

What is the on-resistance of this MOSFET?

The typical on-resistance (RDS(on)) is 5.6mΩ at VGS=10V, with a maximum of 6.8mΩ. At VGS=4.5V, the typical value is 8.2mΩ with a maximum of 10.5mΩ.

What package is this part available in?

This MOSFET is supplied in a DFN 5x6 surface-mount package.

What is the operating temperature range?

The junction and storage temperature range is -55°C to 150°C.

Is the AON6380 RoHS compliant?

Yes, the device is RoHS3 compliant and Halogen-Free compliant.
