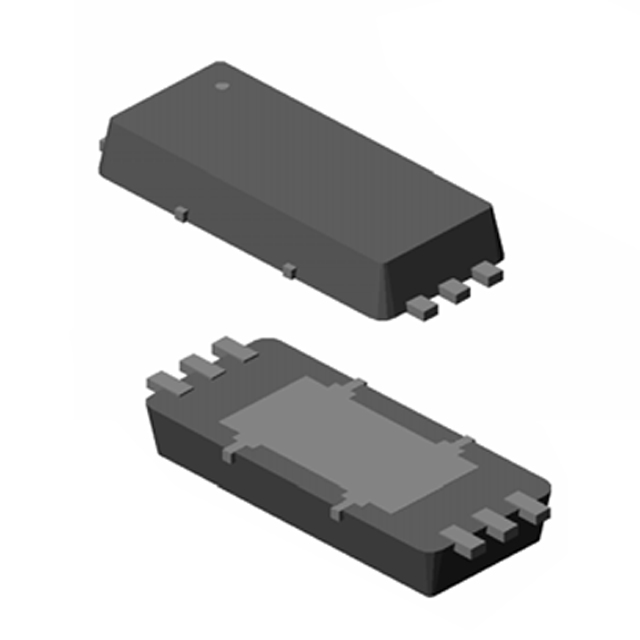

AON5820 The AON5820 is a 20V common-drain dual N-channel MOSFET from Alpha & Omega Semiconductor. It offers 10A continuous drain current and is packaged in a DFN 2x5.
Mfr Part #:

AON5820

Available from 1 distributors
Mfr Name: Alpha&Omega Semicondu Ctor
Alpha&Omega Semicondu Ctor
The AON5820 is a 20V common-drain dual N-channel MOSFET from Alpha & Omega Semiconductor. It offers 10A continuous drain current and is packaged in a DFN 2x5.
✓ Total Stock: 21,883 pcs
$ Price Range: $0.33

AON5820 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
21,883 pcs
On Request
21883 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AON5820 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Drain to Source Voltage (Vdss)
FET Feature
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power
Rds On (Max) @ Id, Vgs
Storage Temperature
Supplier Device Package
Technology
Vgs(th) (Max) @ Id
View Similar Products (0)

AON5820 Description

Short technical summary and product information.

The AON5820 is a 20V common-drain dual N-channel MOSFET manufactured by Alpha & Omega Semiconductor using advanced trench technology. It provides excellent RDS(ON) performance with low gate charge and can operate with gate voltages as low as 2.5V while retaining a 12V VGS maximum rating. The device is ESD protected to HBM Class 2.



Key specifications include a drain-source voltage (VDS) of 20V, continuous drain current (ID) of 10A at 25°C (8A at 70°C), and pulsed drain current of 85A. The static drain-source on-resistance is typically 5.5mΩ at VGS=4.5V and ID=10A. The gate threshold voltage ranges from 0.3V to 1.0V.



The common-drain configuration makes this MOSFET suitable for use as a uni-directional or bi-directional load switch. It is packaged in a DFN 2x5 (6-pin) surface-mount package. The operating junction temperature range is -55°C to 150°C, with a maximum power dissipation of 1.7W at 25°C.

AON5820 Quick Information

Product Type: MOSFET Array
Canonical Name: AON5820 20V Common-Drain Dual N-Channel MOSFET
Subcategory: Common-Drain Dual N-Channel MOSFET

AON5820 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1
REACH Status: Compliant

AON5820 Estimated Pricing

Qty Low High
5,000+ $0.33 $0.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

AON5820 Features

  • 20V drain-source voltage rating.
  • 10A continuous drain current.
  • Low on-resistance down to 5.5mΩ.
  • ESD protected to HBM Class 2.
  • Common-drain configuration for bidirectional switching.

AON5820 Applications

  • Used in load switching applications.
  • Suitable for battery protection circuits.
  • Ideal for power management in portable devices.
  • Can be used as a bidirectional switch.

AON5820 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage rating?

20V.

What is the package type?

DFN 2x5 (6-pin).

What is the operating temperature range?

-55°C to 150°C.

What is the continuous drain current?

10A at 25°C, 8A at 70°C.

What is the gate threshold voltage?

0.3V to 1.0V.

Is the device ESD protected?

Yes, HBM Class 2.
