Mfr Part #:

AON4605

Name: AON4605
Brand: ALPHA & OMEGA SEMICONDU CTOR
SKU: AON4605

Description:

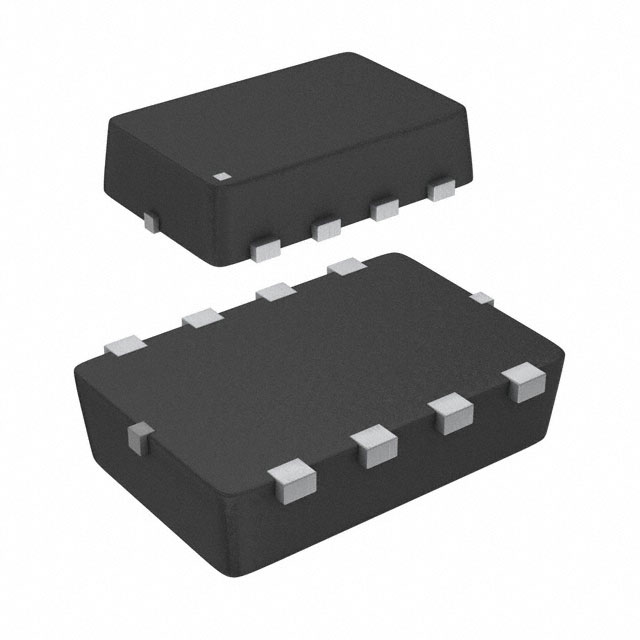

MOSFET N/P-CH 30V 4.3A/3.4A 8DFN

Stock on Request

AON4605 Description

Short technical summary and product information.

MOSFET N/P-CH 30V 4.3A/3.4A 8DFN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

AON4605_001

ALPHA & OMEGA SEMICONDU CTOR

MOSFET N/P-CH 30V 4.3A/3.4A 8DFN

Category	Transistors - FETs, MOSFETs - Arrays
Manufacturer Name	ALPHA & OMEGA SEMICONDU CTOR
Configuration	N and P-Channel
Current	4.3A, 3.4A
Drain to Source Voltage (Vdss)	30V
FET Feature	Logic Level Gate
Gate Charge (Qg) (Max) @ Vgs	5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	210pF @ 15V
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Power	1.9W
Rds On (Max) @ Id, Vgs	50mOhm @ 4.3A, 10V
Supplier Device Package	8-DFN (3x2)
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	2.5V @ 250µA
