| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

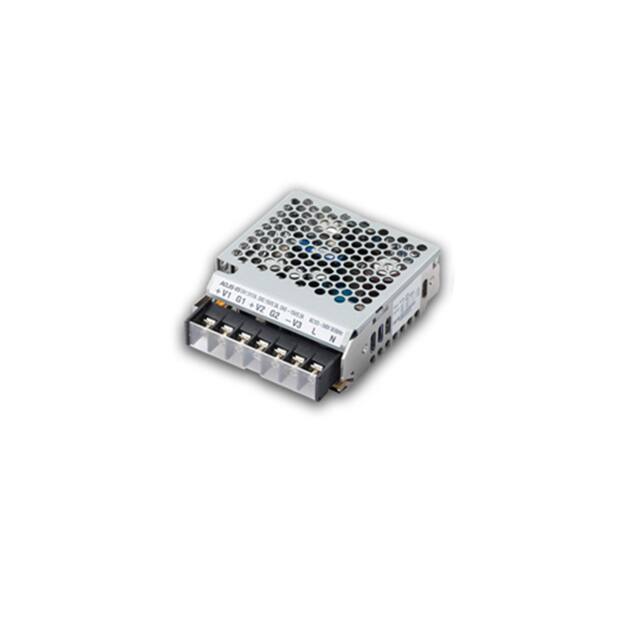

The ETA AOJS50-12 is a 50W AC/DC converter designed for ITE (Commercial) applications. This enclosed unit provides a stable 12V output and is suitable for chassis mounting.
Key electrical specifications include an input voltage range and an output current of 4.2A. The converter operates with 83% efficiency and offers a high dielectric strength of 3 kV. Its operating temperature range is -10°C to 70°C, with derating applied at higher temperatures.
Mechanically, the AOJS50-12 measures 99.0mm in length, 97.0mm in width, and 36.0mm in height. It is designed for robust performance and reliability in various industrial and commercial settings.
Compliance certifications include CE and cURus, indicating adherence to safety and performance standards. The product is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
12V DC.
4.2A.
-10°C to 70°C with derating.
Chassis mount enclosed. Dimensions: 99.0mm x 97.0mm x 36.0mm.
83%.
CE and cURus.
ITE (Commercial) applications.
