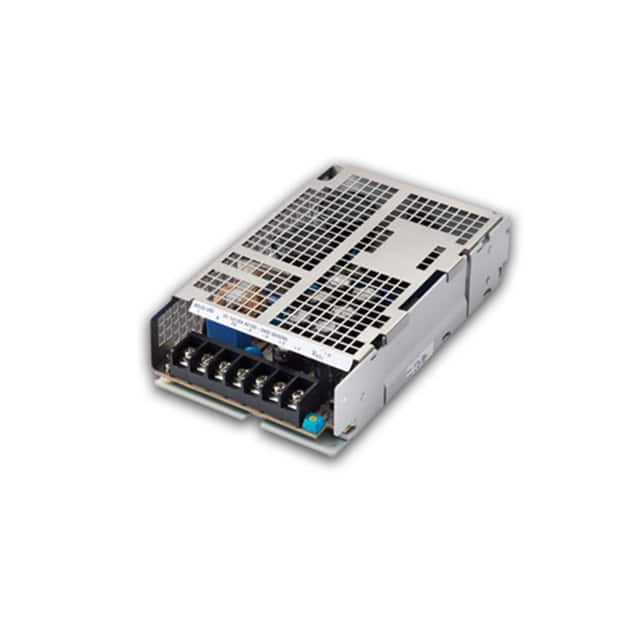

AOJS25-05 The ETA AOJS25-05 is an enclosed AC/DC converter delivering 25W of power with a 5A output current. It features universal input and chassis mounting.
Mfr Part #:

AOJS25-05

Mfr Name: ETA
ETA
The ETA AOJS25-05 is an enclosed AC/DC converter delivering 25W of power with a 5A output current. It features universal input and chassis mounting.
Stock on Request

AOJS25-05 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Type
Voltage
Width
View Similar Products (0)

AOJS25-05 Description

Short technical summary and product information.

This ETA AOJS25-05 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides 25W of power with a 5A output current and features universal input capabilities.



The converter has a voltage isolation rating of 3 kV and operates within a temperature range of -25°C to 70°C with derating. Its dimensions are 79.0mm in length, 51.0mm in width, and 28.5mm in height, making it suitable for chassis mounting.



Key electrical specifications include an efficiency of 79% and a single output. The unit is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1.

AOJS25-05 Quick Information

Product Type: AC DC Converter
Canonical Name: ETA AOJS25-05 AC/DC Converter
Subcategory: AC DC Converter

AOJS25-05 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AOJS25-05 Features

  • Enclosed AC/DC converter with 25W power output.
  • Provides 5A current with universal input.
  • Chassis mount type for easy integration.
  • Operates from -25°C to 70°C with derating.
  • RoHS3 compliant with MSL 1 rating.

AOJS25-05 Applications

  • Used in commercial ITE equipment.
  • Suitable for industrial control panels.
  • Ideal for telecommunications power supplies.
  • Powers embedded systems and sensors.

AOJS25-05 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the AOJS25-05?

-25°C to 70°C with derating.

What is the output voltage and current?

5V at 5A.

What is the power rating?

25W.

What is the efficiency?

79%.

What approvals does the AOJS25-05 have?

CE and cURus.

What is the mounting type?

Chassis mount.

What is the isolation voltage?

3kV.
