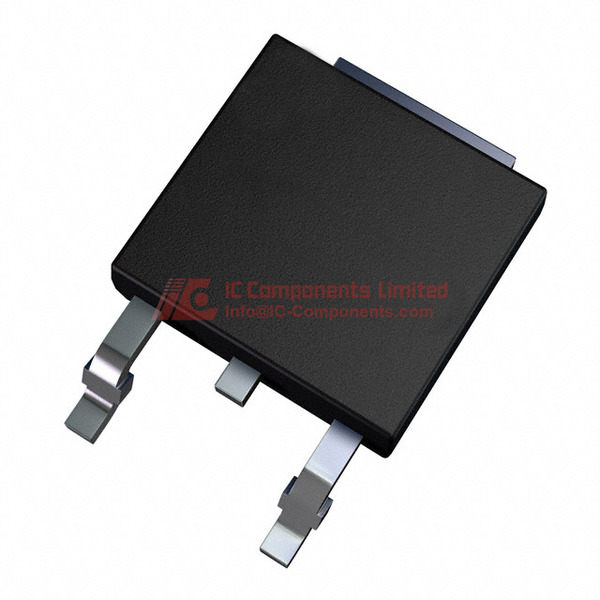

AOD4182 The AOS AOD4182 is an N-Channel MOSFET designed for power applications. It features an 80V drain-source voltage and a continuous drain current of up to 53A.
Mfr Part #:

AOD4182

Available from 3 distributors
Mfr Name: AOS
AOS
The AOS AOD4182 is an N-Channel MOSFET designed for power applications. It features an 80V drain-source voltage and a continuous drain current of up to 53A.
✓ Total Stock: 8,778 pcs
$ Price Range: $3.03

AOD4182 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,100 pcs
On Request
7100 pcs On Request 1 On Request On Request 2016+ On Request On Request
RAD ✓
Non-Authorised Inventory information
1,090 pcs
On Request
1090 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
588 pcs
On Request
588 pcs On Request 1 On Request On Request 10+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AOD4182 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Drain to Source Voltage (Vdss)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Rds On (Max) @ Id, Vgs
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

AOD4182 Description

Short technical summary and product information.

The AOD4182 from AOS is an N-Channel MOSFET belonging to the SDMOS™ series. This device is designed for efficient power switching applications, offering a drain-source voltage (Vdss) of 80V and a continuous drain current (Id) of 8.5A at 25°C ambient temperature, or 53A at 25°C case temperature.



Key electrical characteristics include a low on-resistance (Rds On) of 15.5 mOhm at 20A and 10V gate-source voltage, and a gate threshold voltage (Vgs(th)) of 4.2V maximum at 250µA. The MOSFET supports a maximum gate-source voltage of ±25V and requires a drive voltage between 7V and 10V for optimal performance.



Packaged in a surface-mount TO-252 (D-Pak) package, the AOD4182 is suitable for applications where space is a consideration. It operates across a wide temperature range from -55°C to 175°C (TJ). The component is manufactured using Metal Oxide Semiconductor technology.



Environmental compliance includes Lead Free status. The device is supplied in cut tape packaging.

AOD4182 Quick Information

Product Type: MOSFET
Series: AOD
Canonical Name: AOD4182 N-Channel MOSFET
Subcategory: N-Channel

AOD4182 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead free

AOD4182 Estimated Pricing

Qty Low High
1+ $3.03 $3.03

Estimated market price range - modelled values for guidance only, not live distributor offers.

AOD4182 Features

  • N-Channel MOSFET technology
  • 80V drain-source voltage rating
  • 53A continuous drain current
  • Low 15.5 mOhm on-resistance
  • Surface mount TO-252 package

AOD4182 Applications

  • Suitable for DC-DC converter circuits.
  • Ideal for load switch applications.
  • Used in motor control and power management.
  • Compatible with automated surface mount assembly.

AOD4182 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the drain-source voltage (Vdss) for the AOD4182?

The drain-source voltage (Vdss) for the AOD4182 is 80V.

What is the maximum continuous drain current for the AOD4182?

The maximum continuous drain current (Id) for the AOD4182 is 53A at the case temperature (Tc).

What is the on-resistance (Rds On) of the AOD4182?

The Rds On (Max) for the AOD4182 is 15.5 mOhm at 20A and 10V.

What is the operating temperature range for the AOD4182?

The operating temperature range (TJ) for the AOD4182 is -55°C to 175°C.

What package type is the AOD4182 MOSFET supplied in?

The AOD4182 MOSFET is supplied in a TO-252, (D-Pak) surface mount package.
