| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Control Voltage Range | |
| Frequency | |
| Frequency Pull Range | |
| Frequency Stability | |
| Function | |
| Height | |
| Lead Style | |
| Length | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Output Level (Sinewave) | |
| Output Load | |
| Package / Case | |
| Power Consumption (Steady State) | |
| Power Consumption (Turn on) | |
| Spurious Response | |
| Storage Temperature | |
| Supply Voltage | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Warm-up Time | |
| Width | |
| aging (Maximum @ Over 10 years) | |
| aging (Maximum @ Per year) | |
| phase_noise (Typical @ Offset=1 kHz, Carrier=10 MHz) | |
| phase_noise (Typical @ Offset=10 Hz, Carrier=10 MHz) | |
| phase_noise (Typical @ Offset=10 kHz, Carrier=10 MHz) | |
| phase_noise (Typical @ Offset=100 Hz, Carrier=10 MHz) |
The Abracon AOCJY1-100.000MHZ-E-SW is a voltage controlled oven controlled crystal oscillator (VCOCXO) designed for applications requiring precise frequency reference. It operates at 100 MHz with a sine wave output at 2.00 dBm into a 50 Ω load. The oscillator offers exceptional frequency stability of ±200 ppb over the -20°C to +70°C operating temperature range.
This VCOCXO features a crystal resonator, providing excellent close-in phase noise performance: -90 dBc/Hz at 10 Hz offset, -120 dBc/Hz at 100 Hz, -145 dBc/Hz at 1 kHz, and -150 dBc/Hz at 10 kHz (typical for 10 MHz carrier). The supply voltage is 3.3V, with a standby (power down) function. Warm-up time is less than 3 minutes at 25°C, and steady state power consumption is 1.0 W.

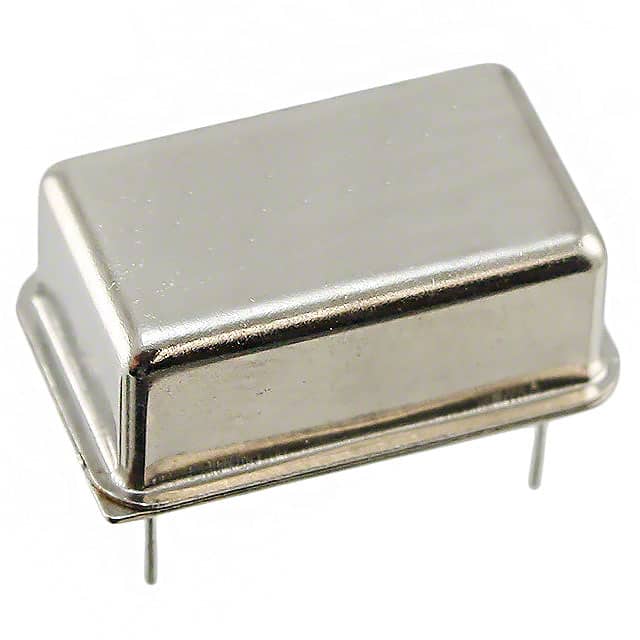

Packaged in a 14-DIP, 4-lead, full size metal can with through hole mounting, the device measures 20.80 mm x 13.20 mm x 8.48 mm. It is RoHS3 compliant. Typical applications include cellular infrastructure, radar systems, test and measurement equipment, GPS tracking with precision hold-over, and WiMax/WLAN base stations.
| Qty | Low | High |
|---|---|---|
| 1+ | $106.06 | $106.06 |
| 10+ | $92.25 | $92.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency is 100 MHz.
The output is a sine wave at 2.00 dBm into 50 Ω.
The supply voltage is 3.3V.
The operating temperature range is -20°C to +70°C.
Yes, the product is RoHS3 compliant.
The package is 14-DIP, 4 leads (full size, metal can) with through hole mounting.
The frequency stability is ±200 ppb.
