| Category | |
| Manufacturer Name | |
| Altitude During Operation | |
| Applications | |
| Approval Agency | |
| Case Material | |
| Cooling Method | |
| Current | |
| EMC EMS | |
| EMC/EMI | |
| Efficiency | |
| Efficiency (Typical) | |
| External Fuse | |
| Features | |
| Frequency | |
| Height | |
| Hold Up Time | |
| Humidity | |
| Input Voltage | |
| Inrush Current | |
| Isolation (@ Input/output) | |
| Leakage Current | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| MTBF | |
| Maximum Capacitive Load | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Over Power Protection | |
| Over Voltage Protection | |
| Power (Watts) | |
| Ripple & Noise | |
| Safety Approval | |
| Shock | |
| Short circuit protection | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Vibration | |
| Voltage | |
| Voltage Accuracy | |
| Weight | |
| Width |

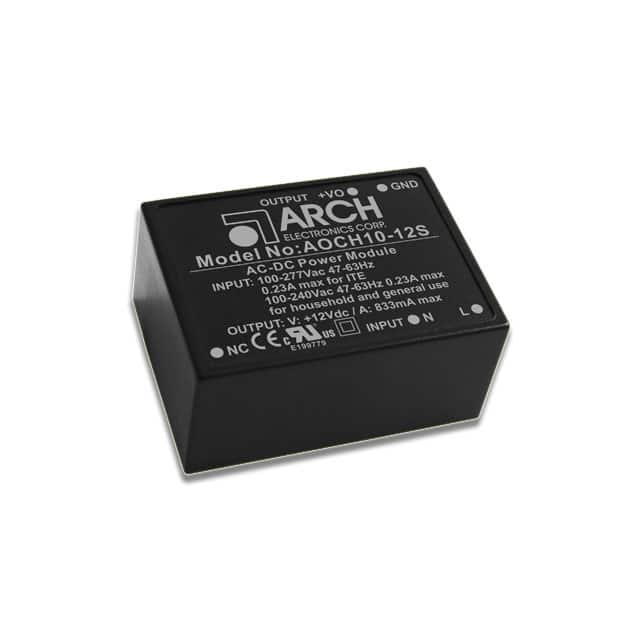

The ARCH AOCH10-12S is a compact AC/DC power module from the AOCH10 series, delivering 10 watts of power with a 12V DC output. It is designed for universal input voltage ranging from 90 to 305 VAC or 120 to 430 VDC, making it suitable for global applications.
Key electrical specifications include a maximum output current of 833mA, voltage accuracy of ±2%, and line/load regulation of ±0.2% and ±0.5% respectively. The module boasts a high efficiency of up to 85% at 230VAC and features protections such as over-power, over-voltage, and short-circuit with auto-recovery.
With an ultra-compact size of 1.46" x 1.08" x 0.79", it is housed in a 5-DIP module package and mounts via through-hole. The operating ambient temperature range is -40°C to +70°C with derating. Safety approvals include UL, IEC, EN 62368-1, and others, ensuring compliance for ITE and household appliance applications.
The AOCH10-12S provides a regulated 12VDC output with a tolerance of ±2%.
It accepts a wide input range of 90-305 VAC or 120-430 VDC at frequencies between 47-440 Hz.
The module uses a 5-DIP package designed for through-hole mounting.
The converter operates reliably from -40°C to +70°C when derated.
It features 4000 VAC isolation between the input and output terminals.
A 2A slow-blow type external fuse is mandatory for proper circuit protection.
