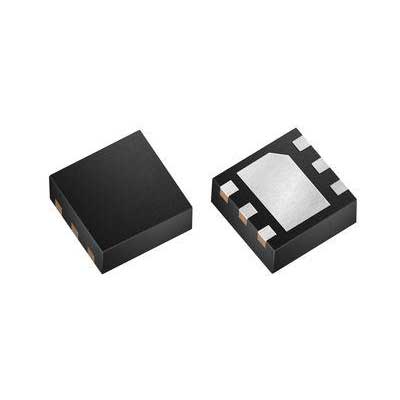

The AOC3868 is a common-drain dual N-channel MOSFET fabricated with trench power MOSFET technology. It integrates two N-channel MOSFETs in a single package, configured with a common drain for simplified circuit design in battery protection and charging applications.
Key electrical characteristics include a maximum source-source voltage of 12V, a gate-source voltage rating of ±8V, and continuous source current rating of 20A at 25°C ambient (80A pulsed). On-resistance is exceptionally low, ranging from 2.9mΩ typical (5.0mΩ max) at Vgs=4.5V to 3.5mΩ typical (7.0mΩ max) at Vgs=2.5V. Gate charge is 35nC typical (50nC max). The device includes ESD protection rated HBM Class 3A.
The MOSFET is housed in a compact 6-DFN (2.7x1.8mm) surface mount package with a junction-to-ambient thermal resistance of 50°C/W (steady state) and 40°C/W (t≤10s). Operating junction temperature range is -55°C to 150°C. Power dissipation is 2.5W at 25°C ambient.
The AOC3868 is RoHS3 and Halogen-Free compliant, suitable for portable electronics and battery-powered devices. It is supplied in tape and reel packaging with a minimum order quantity of 5000 units.
| Qty | Low | High |
|---|---|---|
| 5,000+ | $0.37 | $0.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AOC3868 is offered in a 6-XDFN package, with a supplier device package of 6-DFN (2.7x1.8mm) for surface mount assembly.
The junction temperature range is -55°C to 150°C.
Yes, the AOC3868 is RoHS3 compliant and also Halogen-Free compliant per the datasheet.
The continuous source current is 20A at 25°C ambient temperature.
At Vgs=4.5V and Id=4A, the typical on-resistance is 4.15mΩ, with a maximum of 5.0mΩ.
The device includes ESD protection rated HBM Class 3A, enhancing reliability in handling and operation.
