| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

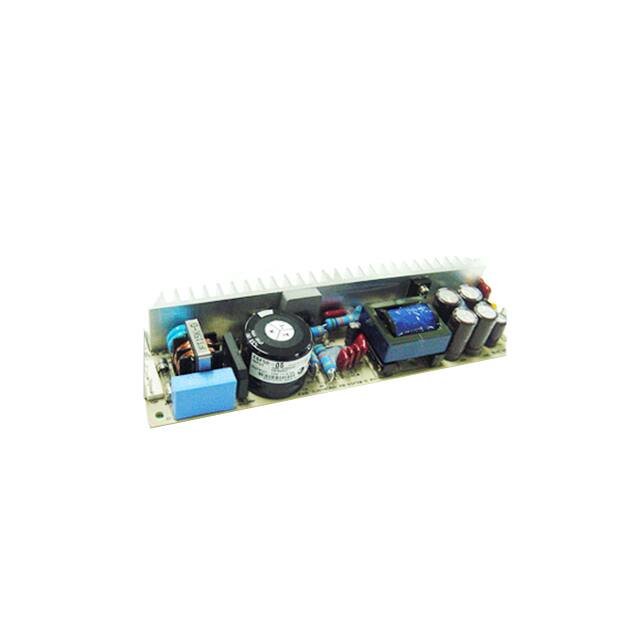

The ETA AOBN50-24 is an open frame AC/DC converter designed for ITE (Commercial) applications. It delivers 50W of power with a 24V output voltage and a current rating of 2.1A.
This converter features a universal input and an efficiency of 80%. It has a wide operating temperature range of -10°C to 50°C with derating. The unit is designed for chassis mounting.
Key specifications include a 3 kV isolation voltage and compliance with CE, cUL, FCC, and UL standards. The dimensions are 195.0mm in length, 55.0mm in width, and 27.0mm in height.
The output voltage is 24V DC.
The power rating is 50W.
The operating temperature range is -10°C to 50°C with derating.
The approvals are CE, cUL, FCC, and UL.
The efficiency is 80%.
The AOBN50-24 is an open frame converter with chassis mount. Dimensions are 195.0mm x 55.0mm x 27.0mm.
The isolation voltage is 3 kV.
