| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The AOB2500L is a 150V N-Channel enhancement-mode MOSFET manufactured by Alpha & Omega Semiconductor using advanced Trench MOSFET technology. This device is designed to deliver high efficiency in switching applications by minimizing both conduction and switching losses.
Key electrical specifications include a drain-source voltage (Vdss) of 150V, a continuous drain current of 152A at Tc=25°C, and a maximum on-resistance of 6.2 mΩ at Vgs=10V and Id=20A. The gate threshold voltage ranges from 2.3V to 3.5V, and the device can handle pulsed drain currents up to 440A. The MOSFET is 100% UIS tested and 100% Rg tested for reliability.

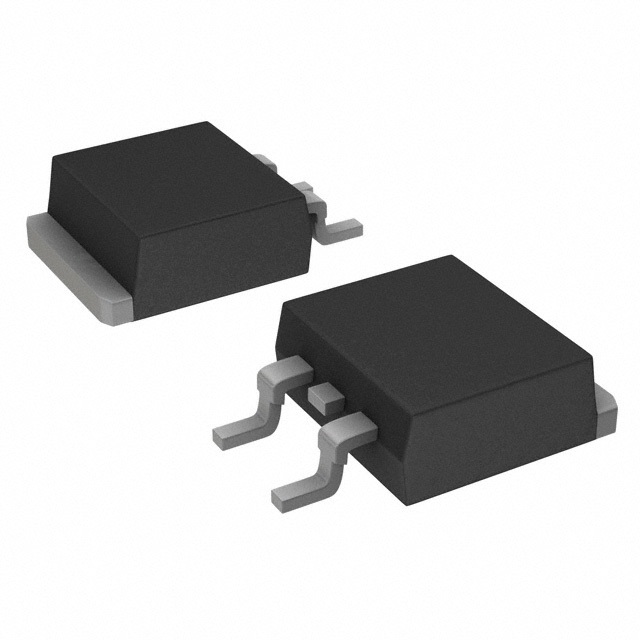

The AOB2500L is housed in a surface-mount TO-263 (D2Pak) package, which provides excellent thermal performance with a junction-to-case thermal resistance of 0.4 °C/W. The operating junction temperature range is -55°C to 175°C. This component is suitable for boost converters, synchronous rectifiers, and power supplies in consumer, telecom, and industrial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.85 | $5.85 |
| 10+ | $3.90 | $3.90 |
| 50+ | $3.06 | $3.06 |
| 100+ | $2.79 | $2.79 |
| 800+ | $2.22 | $2.22 |
| 2,400+ | $2.06 | $2.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vdss) is 150V.
The continuous drain current is 152A at Tc=25°C and 11.5A at Ta=25°C.
The maximum on-resistance is 6.2 mΩ at Vgs=10V and Id=20A.
The AOB2500L is available in a surface-mount TO-263 (D2Pak) package.
The operating junction temperature range is -55°C to 175°C.
The AOB2500L is listed as RoHS3 compliant, but this information is unverified.
