Mfr Part #:

AO7400

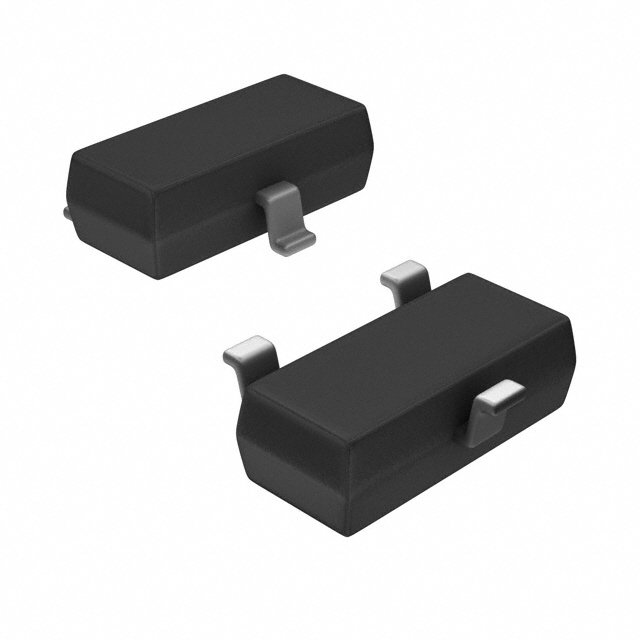

AO7400 is an N-Channel MOSFET from Alpha & Omega Semiconductor with 30V drain-source voltage and 1.7A continuous drain current. It is housed in a surface mount SC-70-3 (SOT-323) package.

✓ Total Stock: 1,550 pcs

$ Price Range: $0.12 - $0.61

AO7400 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	775 pcs On Request	775 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	775 pcs On Request	775 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

AO7400 Description

Short technical summary and product information.

The AO7400 is an N-Channel MOSFET from Alpha & Omega Semiconductor built with advanced trench technology. It features a maximum drain-source voltage of 30V and continuous drain current of 1.7A at 25°C ambient temperature. The device offers low on-resistance with typical values of 45mΩ at 10V gate drive, 50mΩ at 4.5V, and 61mΩ at 2.5V, enabling efficient operation at low gate voltages.

Gate threshold voltage ranges from 0.5V minimum to 1.4V maximum, and the gate can be driven up to ±12V. Input capacitance is typically 185pF at 15V, and total gate charge is 10nC typical at 10V. The MOSFET is capable of handling pulsed drain currents up to 15A and has a maximum power dissipation of 350mW at 25°C.

The AO7400 is supplied in a surface mount SC-70-3 (SOT-323) package, making it suitable for compact designs. It operates over a wide junction temperature range of -55°C to 150°C. Typical applications include load switching, low current inverters, and low current DC-DC converters.

AO7400 Quick Information

Product Type: N-Channel MOSFET

Canonical Name: Alpha & Omega Semiconductor AO7400 N-Channel MOSFET

Subcategory: N-Channel MOSFET

AO7400 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 (Unlimited)

REACH Status: REACH Unaffected

AO7400 Estimated Pricing

Qty	Low	High
1+	$0.61	$0.61
10+	$0.38	$0.38
50+	$0.27	$0.27
100+	$0.24	$0.24
500+	$0.18	$0.18
3,000+	$0.14	$0.14
9,000+	$0.12	$0.12

Estimated market price range - modelled values for guidance only, not live distributor offers.

AO7400 Features

N-Channel MOSFET with 30V drain-source voltage.
Continuous drain current up to 1.7A at 25°C.
Low Rds(on) of 45 mOhm typical at 10V drive.
Surface mount package SC-70-3 (SOT-323).
Wide operating temperature range -55°C to 150°C.

AO7400 Applications

Ideal for load switching applications.
Used in low current DC-DC converters.
Suitable for low current inverter circuits.

AO7400 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the drain-source voltage rating of the AO7400?

30V maximum.

What is the package type of the AO7400?

SC-70, SOT-323; supplier device package SC-70-3.

What is the operating temperature range of the AO7400?

-55°C to 150°C (junction).

Is the AO7400 RoHS compliant?

RoHS3 Compliant (unverified).

What is the maximum drain current of the AO7400?

1.7A continuous at 25°C ambient temperature.

What is the gate threshold voltage range?

Minimum 0.5V, typical 1V, maximum 1.4V at 250µA drain current.

What is the power dissipation rating?

350 mW maximum at 25°C ambient temperature.

Category	Transistors - FETs, MOSFETs - Single
Manufacturer Name	Alpha&Omega Semicondu Ctor
Current	1.7 A
Drain to Source Voltage (Vdss)	30 V
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	4.82 nC
Input Capacitance (Ciss) (Max) @ Vds	390 pF @ 15 V
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Power Dissipation (Max)	350 mW
Rds On (Max) @ Id, Vgs	85 mOhm
Supplier Device Package	SC-70-3
Technology	MOSFET (Metal Oxide)
Vgs (Max)	±12 V
Vgs(th) (Max) @ Id	1.4V @ 250µA
