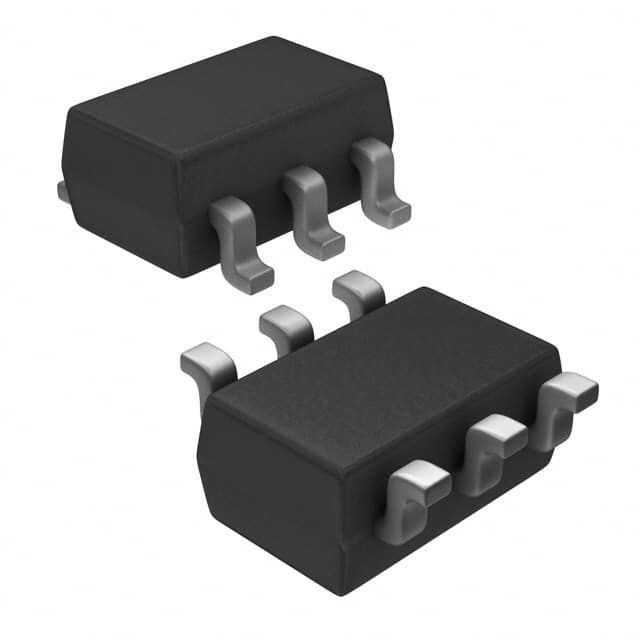

The AO6604 is a 20V complementary MOSFET from Alpha & Omega Semiconductor that integrates both N-channel and P-channel enhancement-mode transistors in a compact 6-TSOP package. This device is designed for load switch and battery protection applications, offering low on-resistance and logic-level gate drive capability.
The N-channel MOSFET has a maximum drain current of 3.4A at 25°C and a pulsed current rating of 13A. On-resistance ranges from 65mΩ at Vgs=4.5V to 100mΩ at Vgs=1.8V. The P-channel provides -2.5A continuous and -13A pulsed, with on-resistance of 75mΩ at Vgs=-4.5V and 115mΩ at Vgs=-1.8V. Gate threshold voltage is 0.4V to 1V for the N-channel.
Key dynamic characteristics include input capacitance of 260pF typical (320pF max), total gate charge of 2.9nC typical (3.8nC max), and switching times in the nanosecond range. Thermal resistance junction-to-ambient is 106°C/W typical (150°C/W max) in steady state, with a maximum junction temperature of 150°C.
The device is housed in a surface-mount 6-TSOP (SC-74, SOT-457) package and is suitable for automated assembly. Operating temperature range is -55°C to 150°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.89 | $0.89 |
| 10+ | $0.56 | $0.56 |
| 50+ | $0.41 | $0.41 |
| 100+ | $0.36 | $0.36 |
| 500+ | $0.28 | $0.28 |
| 3,000+ | $0.21 | $0.21 |
| 9,000+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AO6604 has a 20V drain-source voltage for the N-channel and -20V for the P-channel.
The AO6604 is available in a surface mount 6-TSOP package (SC-74, SOT-457).
The operating temperature range is -55°C to 150°C.
The AO6604 is listed as RoHS3 compliant, but this is unverified.
The N-channel continuous drain current is 3.4A at 25°C.
The N-channel Rds(on) is 65mΩ maximum (51mΩ typical) at Vgs=4.5V, Id=3.4A.
The N-channel gate threshold voltage is 0.4V minimum, 0.7V typical, and 1.0V maximum.
