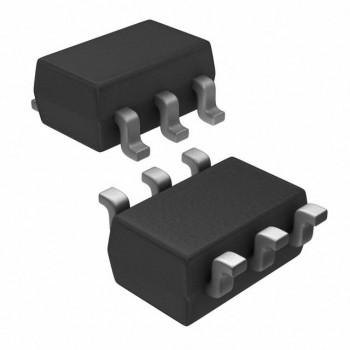

AO6411 The AO6411 is a P-Channel MOSFET from Alpha and Omega Semiconductor, Inc. It features a 20V drain-source voltage and 7A continuous drain current.
Mfr Part #:

AO6411

Available from 1 distributors
Mfr Name: AOS
AOS
The AO6411 is a P-Channel MOSFET from Alpha and Omega Semiconductor, Inc. It features a 20V drain-source voltage and 7A continuous drain current.
✓ Total Stock: 1,619 pcs
$ Price Range: $1.93

AO6411 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
1,619 pcs
On Request
1619 pcs On Request 1 On Request On Request 17+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AO6411 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Drain to Source Voltage (Vdss)
Drive Voltage (Max Rds On, Min Rds On)
FET Type
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power Dissipation (Max)
Tape & Reel
Technology
Vgs (Max)
Vgs(th) (Max) @ Id
View Similar Products (0)

AO6411 Description

Short technical summary and product information.

The AO6411 is a P-Channel MOSFET manufactured by Alpha and Omega Semiconductor, Inc. This component is designed for various electronic applications requiring efficient switching and power control.



Key electrical characteristics include a maximum drain-source voltage (Vdss) of 20V and a continuous drain current (Id) of 7A at 25°C (Ta). The drive voltage ranges from 1.8V to 4.5V, with a threshold voltage (Vgs(th)) of 900mV at 250µA. Gate charge (Qg) is a maximum of 18 nC at 4.5V, and the maximum gate-source voltage (Vgs) is ±8V. Input capacitance (Ciss) is up to 1025 pF at 10V.



This MOSFET has a maximum power dissipation of 2.7W (Ta) and operates within a temperature range of -55°C to 150°C (TJ). It is housed in a 6-TSOP package, also known as SC-74 or SOT-457, and is designed for surface mounting.



The AO6411 is classified under the AlphaMOS series and is a Metal Oxide Semiconductor Field-Effect Transistor.

AO6411 Quick Information

Product Type: MOSFET
Canonical Name: AO6411 P-Channel MOSFET
Subcategory: P-Channel

AO6411 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AO6411 Estimated Pricing

Qty Low High
1+ $1.93 $1.93

Estimated market price range - modelled values for guidance only, not live distributor offers.

AO6411 Features

  • P-Channel MOSFET technology
  • 20V drain-source voltage
  • 7A continuous drain current
  • Surface mount 6-TSOP package
  • Wide operating temperature range

AO6411 Applications

  • Suitable for power switching circuits
  • Used in general electronic applications
  • Ideal for low-voltage applications
  • Efficient current handling capability

AO6411 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage for the AO6411 MOSFET?

The maximum drain-source voltage (Vdss) for the AO6411 MOSFET is 20V.

What is the continuous drain current rating of the AO6411 at 25°C?

The continuous drain current (Id) for the AO6411 at 25°C (Ta) is 7A.

What are the drive voltage requirements for the AO6411?

The drive voltage for the AO6411 ranges from 1.8V to 4.5V.

What is the maximum operating temperature for the AO6411?

The AO6411 can operate at temperatures up to 150°C (TJ).

What type of package is the AO6411 MOSFET supplied in?

The AO6411 MOSFET is supplied in a 6-TSOP package, also known as SC-74 or SOT-457.

Is the AO6411 RoHS compliant?

The AO6411 is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the AO6411?

The Moisture Sensitivity Level (MSL) for the AO6411 is 1 Unlimited.
