| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Storage Temperature | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The AO6409 is a P-Channel enhancement-mode MOSFET fabricated using advanced trench technology to achieve low on-resistance and low gate charge. It is designed for load switch applications where efficient power management is required. The device supports gate drive voltages as low as 1.8V, making it suitable for low-voltage logic level control.
Key electrical specifications include a maximum drain-source voltage of -20V, continuous drain current of -5.5A at 25°C ambient (derated to -4.2A at 70°C), and pulsed drain current capability up to -30A. The static drain-source on-resistance is typically 34mΩ at Vgs=-4.5V and Id=-5.5A, with a maximum of 41mΩ. The gate threshold voltage ranges from -0.3V to -0.9V, ensuring reliable turn-on at low gate voltages.

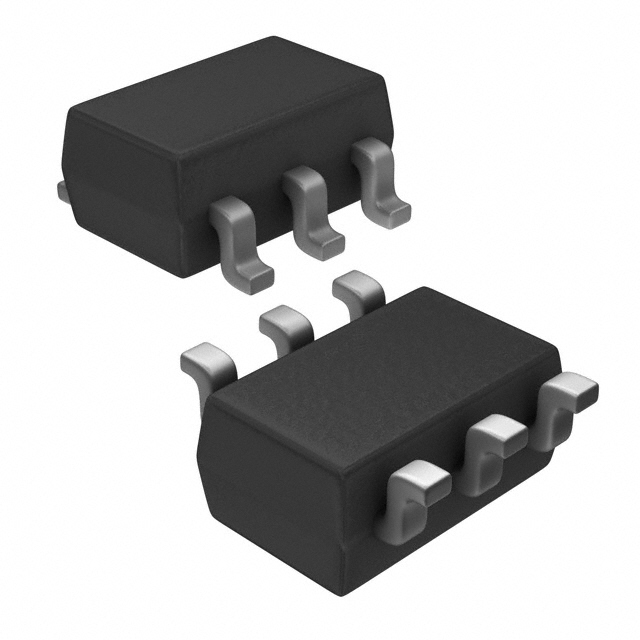

The device is housed in a 6-pin TSOP package (SC-74/SOT-457) and is qualified for surface-mount assembly. It operates over a junction temperature range of -55°C to 150°C, with thermal resistance junction-to-ambient of 48°C/W (typical) for short pulse conditions. The AO6409 also includes ESD protection, enhancing its robustness in handling and assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.76 | $0.76 |
| 3,000+ | $0.15 | $0.15 |
| 6,000+ | $0.14 | $0.14 |
| 9,000+ | $0.13 | $0.13 |
| 15,000+ | $0.13 | $0.13 |
| 21,000+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is -20V.
The AO6409 is available in a SC-74/SOT-457 surface-mount package, also referred to as 6-TSOP.
The operating junction temperature range is -55°C to 150°C.
Yes, the AO6409 is marked as RoHS3 compliant, though this is unverified from the datasheet.
The static drain-source on-resistance is typically 34mΩ and maximum 41mΩ at Vgs=-4.5V and Id=-5.5A.
The gate threshold voltage ranges from -0.3V (minimum) to -0.9V (maximum), with a typical value of -0.57V.
The continuous drain current is -5.5A at 25°C ambient temperature.
