| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
59 pcs
|
59 pcs | On Request | 1 | On Request | On Request | 1236 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |
The AO5404E is a N-Channel enhancement mode MOSFET from Alpha & Omega Semiconductor, designed for low-voltage switching applications. It features a maximum drain-source voltage of 20V and a continuous drain current of 500mA at ambient temperature. The device offers a low on-resistance of 550mOhm maximum at Vgs=4.5V and Id=500mA, ensuring efficient power handling.
With a gate threshold voltage of 1V maximum at Id=250µA and a recommended drive voltage range of 1.8V to 4.5V, the AO5404E is compatible with low-voltage logic levels. The gate charge is only 1nC at 4.5V, and input capacitance is 45pF at Vds=10V, enabling fast switching in compact designs.

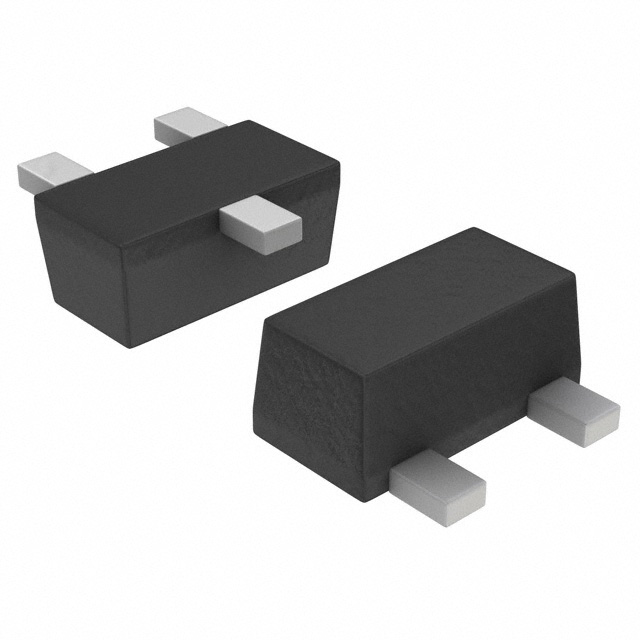

This MOSFET is housed in a surface-mount SC-89-3 package (also known as SOT-490), which occupies minimal board space. It supports an operating junction temperature range of -55°C to 150°C and has a maximum power dissipation of 280mW at ambient temperature. Ideal for load switching, battery management, and power management in portable electronics.
20V.
500mA at ambient temperature.
550mOhm maximum at Vgs=4.5V and Id=500mA.
1V maximum at Id=250µA.
SC-89-3 (SOT-490) surface-mount package.
-55°C to 150°C (junction).
Yes, RoHS3 compliant (unverified).
