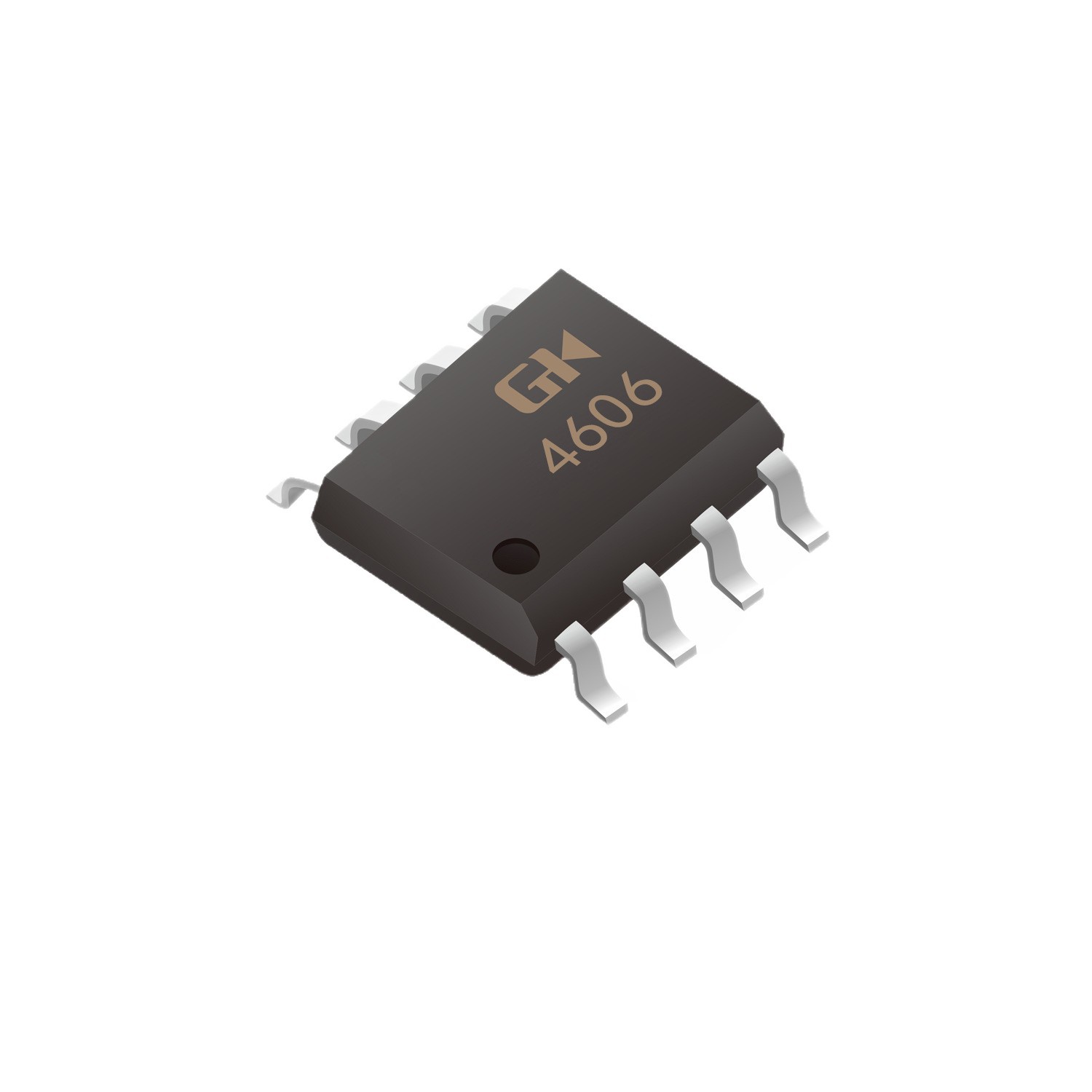

The AO4606 is a 30V N and P-Channel complementary MOSFET array in an SO8 package. It is suitable for high-efficiency switching applications with low on-resistance.

✓ Total Stock: 6,000 pcs

AO4606 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Components Technology Group, Inc. ✓ Non-Authorised Inventory information	6,000 pcs On Request	6000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

AO4606 Description

Short technical summary and product information.

The AO4606 is a dual N and P-Channel enhancement mode power MOSFET from Alpha & Omega Semiconductor. It features a maximum drain-source voltage of 30V for the N-Channel and -30V for the P-Channel, with continuous drain currents of 6A and -6.5A respectively at 25°C. The device offers low static drain-source on-resistance: 30 mΩ for the N-Channel and 28 mΩ for the P-Channel at Vgs=10V. It is designed for 4.5V gate drive applications and provides fast switching performance with typical gate charge of 6 nC (N-Ch) and 16 nC (P-Ch). The MOSFET is housed in an 8-SOIC surface mount package and supports an operating temperature range of -55°C to 150°C. Typical applications include DC fan control, motor drives, and half/full bridge topologies in consumer and industrial systems.

AO4606 Quick Information

Product Type: MOSFET Array

Canonical Name: AO4606: N and P-Channel Complementary MOSFET, 30V/-30V, 6A/6.5A

Subcategory: Complementary MOSFET Array

AO4606 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

AO4606 Features

30V N-Channel and -30V P-Channel MOSFETs.
Low on-resistance: 30 mΩ N-Ch at 10V.
Suitable for 4.5V gate drive applications.
Fast switching with low gate charge.
Surface mount SO8 package.

AO4606 Applications

Used in DC fan and motor drive circuits.
Ideal for half and full bridge topologies.
Suitable for networking equipment power management.
Used in high-efficiency DC-DC converters.

AO4606 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the drain-source voltage rating of the AO4606?

The N-Channel MOSFET has a maximum drain-source voltage of 30V, and the P-Channel has -30V.

What package is the AO4606 available in?

It is available in an 8-SOIC (0.154", 3.90mm Width) surface mount package, also referred to as SO8.

What is the operating temperature range of the AO4606?

The operating junction temperature range is -55°C to 150°C.

Is the AO4606 RoHS compliant?

It is listed as RoHS3 compliant, but this status is unverified.

What is the continuous drain current rating of the AO4606?

The N-Channel can handle 6A continuous at 25°C, and the P-Channel can handle -6.5A.

What is the on-resistance of the AO4606?

The N-Channel has a maximum Rds(on) of 30 mΩ at Vgs=10V, and the P-Channel has 28 mΩ.

What is the gate threshold voltage of the AO4606?

For the N-Channel: minimum 1.2V, typical 1.8V, maximum 2.4V. For the P-Channel: minimum -1.3V, typical -1.85V, maximum -2.4V.

Category	Transistors - FETs, MOSFETs - Arrays
Manufacturer Name	Alpha&Omega Semicondu Ctor
Configuration	N and P-Channel Complementary
Current	6 A
Drain to Source Voltage (Vdss)	30 V
FET Feature	Standard
Gate Charge (Qg) (Max) @ Vgs	6 nC
Industrial Grade	Yes
Input Capacitance (Ciss) (Max) @ Vds	255 pF
Lead Spacing	1.27 mm
Lead Style	Gull Wing
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C
Power	2 W
Rds On (Max) @ Id, Vgs	30 mΩ
Storage Temperature	-55°C ~ 150°C
Supplier Device Package	8-SOIC
Tape & Reel	Yes
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	1.20 V (min) / 1.80 V (typ) / 2.40 V (max)
