| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800,000 pcs
|
800000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Applications | |
| Bandwidth | |
| Frequency (Center | |
| Frequency Group | |
| Frequency Range | |
| Gain | |
| Height | |
| Height (Max) | |
| Impedance | |
| Length | |
| Mounting Type | |
| Number of Bands | |
| Operating Temperature | |
| Polarization | |
| Power | |
| RF Family | |
| Tape & Reel | |
| Termination | |
| Width |

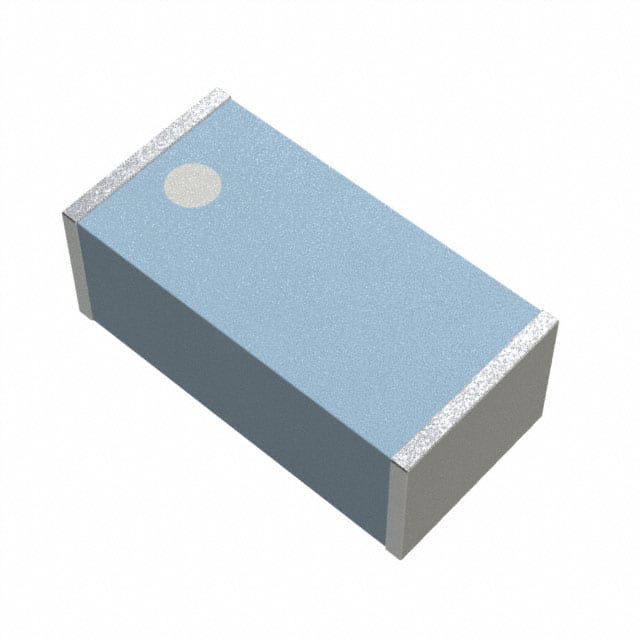

The ANT3216LL00R2400A from Pulse Electronics is a compact ceramic chip antenna operating in the 2.4-2.5 GHz frequency range. It features an omni-directional radiation pattern and a peak gain of 5.05 dBi, making it suitable for various wireless applications.
This antenna is designed for automatic mounting via tape and reel and is compatible with reflow processes. Its dimensions are 3.2 x 1.6 mm with a maximum height of 1.20mm. The termination is Solder type, Ni/Sn lead-free.
Key specifications include a bandwidth of 160 MHz, impedance of 50 Ohms, and a maximum power rating of 1W. The operating temperature range is -40 to 105℃. It is compliant with RoHS3 standards.
Applications include 2.4 GHz Wi-Fi devices, Bluetooth gadgets, Zigbee devices, and other ISM band equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is 2.4 - 2.5 GHz.
The peak gain is 5.05 dBi (Typ.).
The dimensions are 3.20 ±0.15 mm (L) x 1.60 ±0.15 mm (W) x 1.20 ±0.15 mm (T).
The operating temperature range is -40 to 105℃.
It is suitable for 2.4 GHz Wi-Fi devices, Bluetooth gadgets, Zigbee devices, and ISM band equipment.
Yes, it is RoHS3 Compliant.
