| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
260 pcs
|
260 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Data Rate | |
| Frequency | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Output Power | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supply Voltage | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

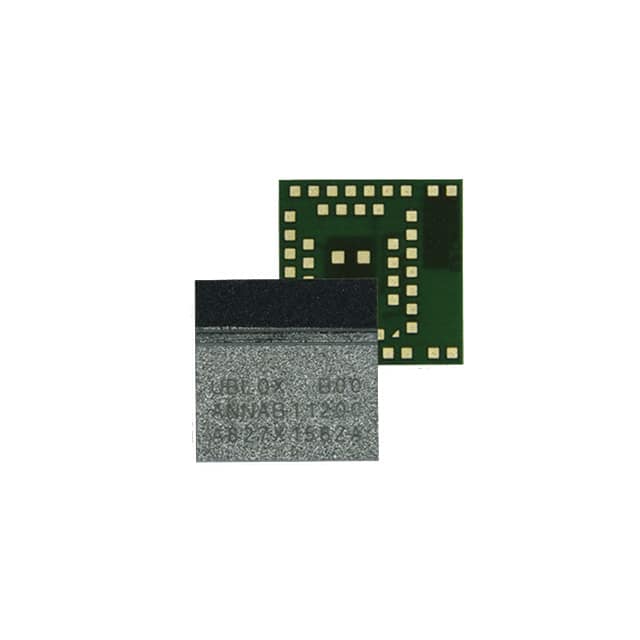

The u-blox ANNA-B112-01B is a compact RF Transceiver Module designed for wireless communication using the Bluetooth v5.0 protocol. It operates in the 2.4GHz ISM band, supporting high-speed data transfer up to 2Mbps. This module features an integrated chip antenna, simplifying PCB design and integration into electronic products.
Key specifications include an output power of 4dBm and a receiver sensitivity of -96dBm, ensuring reliable connectivity. It is powered by the nRF52832 IC and offers a range of serial interfaces including ADC, GPIO, I2C, I2S, PDM, SPI, and UART. The module has 512kB Flash and 64kB RAM memory.
Designed for surface mounting, the ANNA-B112-01B is housed in a 52-SMD Module package. It operates reliably within a temperature range of -40°C to 85°C and requires a supply voltage between 1.7V and 3.6V, making it suitable for battery-powered devices. Its features make it ideal for IoT sensors, wearables, home automation, and consumer electronics.
This module is RoHS3 compliant and has an MSL rating of 3. It is suitable for applications requiring stable Bluetooth connections and low power consumption.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage is 1.7V to 3.6V.
The operating temperature range is -40°C to 85°C.
It supports Bluetooth v5.0 protocol.
The data rate is up to 2Mbps.
The output power is 4dBm.
The receiver sensitivity is -96dBm.
Available serial interfaces include ADC, GPIO, I2C, I2S, PDM, SPI, and UART.
