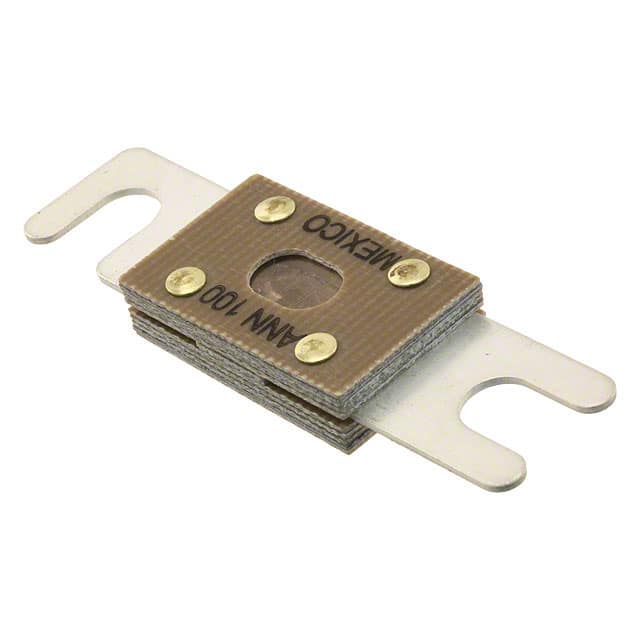

ANN-100 ANN-100 is a 100A fast blow fuse strip rated for 125VAC/80VDC with a bolt mount package.
Mfr Part #:

ANN-100

Available from 1 distributors
Mfr Name: Eaton - Electronics Division
Eaton - Electronics Division
ANN-100 is a 100A fast blow fuse strip rated for 125VAC/80VDC with a bolt mount package.
✓ Total Stock: 42 pcs
$ Price Range: $142.39 - $144.94

ANN-100 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
42 pcs
On Request
42 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ANN-100 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Breaking Capacity @ Rated Voltage
Current Rating (Amps)
Features
Fuse Type
Industrial Grade
Mounting Type
Response Time
Tape & Reel
Voltage Rating
View Similar Products (0)

ANN-100 Description

Short technical summary and product information.

The ANN-100 is a 100A fast blow fuse strip from Eaton - Bussmann Electrical Division. It is rated for 125VAC and 80VDC operation with a breaking capacity of 2.5kA AC and 2.7kA DC at rated voltage.



This indicating fuse features a rectangular blade package with bolt mount terminals, measuring 0.874 inches in diameter and 3.189 inches in length (22.20mm x 81.00mm). It is designed for use in lift truck applications.



The fuse carries UR approval and is RoHS3 compliant with MSL 1 unlimited and REACH unaffected status. Its fast blow response provides rapid overcurrent protection for sensitive circuits.

ANN-100 Quick Information

Product Type: Fuse Strip
Series: ANN
Canonical Name: ANN-100 Fuse Strip
Subcategory: Specialty Fuses

ANN-100 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ANN-100 Estimated Pricing

Qty Low High
1+ $144.94 $144.94
5+ $142.39 $142.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

ANN-100 Features

  • Rated for 100A at 125VAC/80VDC.
  • Fast blow response for rapid protection.
  • Bolt mount package for secure installation.
  • Indicating feature for visual fault detection.
  • UR approved for safety compliance.

ANN-100 Applications

  • Used in lift truck electrical systems.
  • Suitable for high-current industrial equipment.
  • Ideal for DC power distribution protection.

ANN-100 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the ANN-100 fuse?

The ANN-100 fuse has a current rating of 100 A.

What voltage ratings does the ANN-100 support?

The ANN-100 is rated for 125 VAC and 80 VDC.

What is the breaking capacity of the ANN-100?

The breaking capacity is 2.5 kA AC and 2.7 kA DC at rated voltage.

Is the ANN-100 a fast blow or slow blow fuse?

The ANN-100 is a fast blow fuse.

What is the package style of the ANN-100?

The ANN-100 has a rectangular blade package with bolt mount terminals.
