| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency | |
| Inductance | |
| Lead Spacing | |
| Operating Temperature Range | |
| Storage Temperature | |
| Tape & Reel |

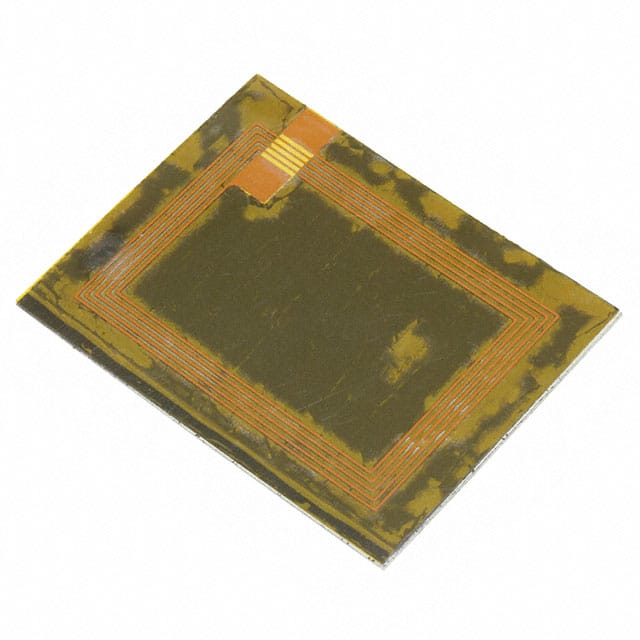

The Abracon LLC ANFCA-3225-A02 is an NFC Ferrite Antenna designed for various applications including mobile devices, NFC payment readers, and electronic wallets. It operates at a frequency of 13.56MHz and offers an inductance of 1.8μH ±10% with a resistance of 2.5Ω ±20%.
This antenna features an ultra-thin flexible structure with a total thickness of 220 ±46 μm, incorporating a peel-and-stick design with a ferrite sheet backing for optimized magnetic fields. It is designed for a wide operating temperature range of -40°C to +85°C, making it suitable for demanding environments. The antenna is matched to leading NFC controller ICs and can be customized to meet specific requirements.
Connection to the PCB is recommended via Pogo Pins for volume applications, although soldering thin wires to the pads is possible with care. The antenna is RoHS/RoHS II compliant and has an MSL rating of 1. It is supplied in a standard package of 100 pieces per polyphene bag/box.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency is 13.56 MHz.
The inductance is 1.8 μH with a tolerance of ±10%.
The operating temperature range is -40°C to +85°C.
The antenna thickness is 220 μm with a tolerance of ±46 μm.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
