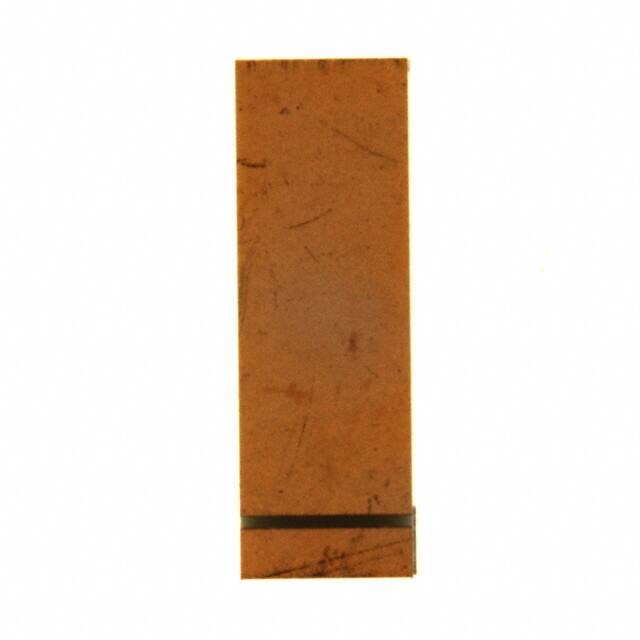

ANCW12G45SAA117RD3 The Murata ANCW12G45SAA117RD3 is a dielectric antenna designed for 2.45GHz applications. It features a surface mount design and operates with a 50 Ohm impedance.
Mfr Part #:

ANCW12G45SAA117RD3

Available from 1 distributors
Mfr Name: Murata
Murata
The Murata ANCW12G45SAA117RD3 is a dielectric antenna designed for 2.45GHz applications. It features a surface mount design and operates with a 50 Ohm impedance.
✓ Total Stock: 383 pcs
$ Price Range: $0.99

ANCW12G45SAA117RD3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
383 pcs
On Request
383 pcs On Request 1 On Request On Request 17+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ANCW12G45SAA117RD3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Bandwidth
Frequency (Center
Frequency Group
Height
Height (Max)
Impedance
Mounting Type
Number of Bands
Operating Temperature
Polarization
Storage Temperature
Tape & Reel
VSWR
View Similar Products (0)

ANCW12G45SAA117RD3 Description

Short technical summary and product information.

The Murata ANCW12G45SAA117RD3 is a dielectric antenna suitable for 2.4GHz W-LAN, Bluetooth, and PHS applications. It operates at a center frequency of 2450MHz with a bandwidth of F0 +/- 50MHz.



This antenna has a VSWR of 2.5 maximum at the specified bandwidth and an impedance of 50 Ohms. It is designed for surface mounting and has a maximum height of 0.079 inches (2.00mm). The operating temperature range is from -40 to +85 degrees Celsius.



The ANCW12G45SAA117RD3 is packaged in a standard reel of 3000 pieces. Its electrical characteristics are influenced by the land pattern, PCB size, and case, and are guaranteed under standard measurement conditions.

ANCW12G45SAA117RD3 Quick Information

Product Type: Dielectric Antenna
Canonical Name: Murata ANCW12G45SAA117RD3 Dielectric Antenna
Subcategory: Dielectric Antenna

ANCW12G45SAA117RD3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ANCW12G45SAA117RD3 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

ANCW12G45SAA117RD3 Features

  • Dielectric antenna for 2.45GHz applications.
  • Surface mount design for easy integration.
  • 50 Ohm impedance for standard RF systems.
  • Operating temperature range of -40 to +85°C.
  • Packaged in reels of 3000 pieces.

ANCW12G45SAA117RD3 Applications

  • Suitable for 2.45GHz wireless communication devices.
  • Used in WLAN and Bluetooth antenna applications.
  • Ideal for RF modules requiring dielectric antennas.
  • Applicable in compact surface-mount RF antenna designs.

ANCW12G45SAA117RD3 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the center frequency of the ANCW12G45SAA117RD3 antenna?

The center frequency (Fo) of the ANCW12G45SAA117RD3 antenna is 2450MHz.

What is the impedance of the ANCW12G45SAA117RD3 antenna?

The impedance of the ANCW12G45SAA117RD3 antenna is 50 Ohms.

What is the operating temperature range for the ANCW12G45SAA117RD3 antenna?

The ANCW12G45SAA117RD3 antenna operates within a temperature range of -40 to +85 degrees Celsius.

What is the VSWR of the ANCW12G45SAA117RD3 antenna?

The VSWR of the ANCW12G45SAA117RD3 antenna is a maximum of 2.5 at the specified bandwidth.

How is the ANCW12G45SAA117RD3 antenna mounted?

The ANCW12G45SAA117RD3 antenna is designed for surface mounting.
