| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,386 pcs
|
3386 pcs | On Request | 1 | On Request | On Request | 06+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Function | |
| Interface | |
| Lead Style | |
| Motor Type | |
| Mounting Type | |
| Output Configuration | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

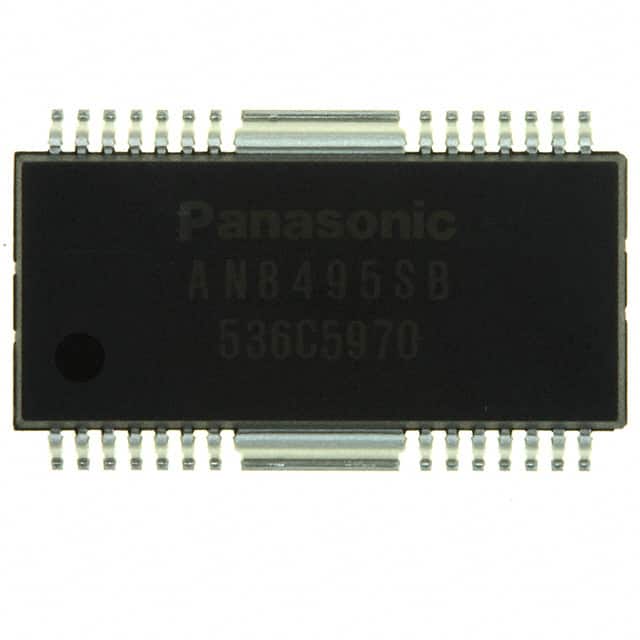

The AN8495SB-E1V from Panasonic Electronic Components is a stepping motor drive integrated circuit designed using a D-MOS process. It provides a maximum output of 30V at 1.5A, enabling 1-2 phase excitation through PWM drive and 2-bit constant-current-chopping. Key features include 4-phase input, 2-bit current level switching, a built-in noise canceller, and phase-change thru-current protection.
This IC is suitable for applications such as printers, FAX machines, and PPCs. It operates within a recommended supply voltage range of 4.75V to 5.25V for VCC and 18.0V to 28.0V for VM. The component is housed in a 28-HSOP package, designed for surface mounting.
Electrical characteristics include output saturation voltages and flywheel diode forward voltage. The control block features a PWM frequency and comparator thresholds for current control. The device integrates control and power stage functions for bipolar stepping motors.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The motor supply voltage (VM) range is 18.0V to 28.0V, and the logic supply voltage (VCC) range is 4.75V to 5.25V.
The maximum output current is 1.5A.
The AN8495SB-E1V is available in a 28-HSOP surface-mount package, also described as a 28-BSOP with heat tabs.
The AN8495SB-E1V is designed to drive bipolar stepper motors.
The typical PWM frequency is 50.2kHz.
