Mfr Part #:

AN8015SH-E1

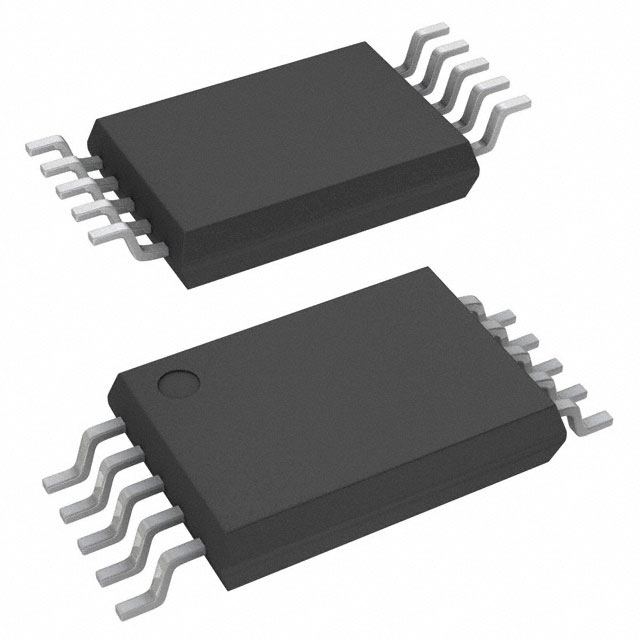

Name: AN8015SH-E1
Brand: Panasonic Electronic Components
SKU: AN8015SH-E1

Description:

IC REG CTRLR BUCK/BOOST 10-SSOP

Stock on Request

AN8015SH-E1 Description

Short technical summary and product information.

IC REG CTRLR BUCK/BOOST 10-SSOP

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

AN8015SH-E1V

Panasonic Electronic Components

IC REG CTRLR BUCK/BOOST 10-SSOP

Category	DC DC Switching Controllers
Manufacturer Name	Panasonic Electronic Components
Clock Sync	No
Control Features	Frequency Control
Duty Cycle (Max)	90%
Frequency	2kHz ~ 500kHz
Function	Step-Up, Step-Down
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature	-30°C ~ 85°C (TA)
Output Configuration	Positive or Negative
Output Phases	1
Output Type	Transistor Driver
Supplier Device Package	10-SSOP
Synchronous Rectifier	No
Topology	Buck, Boost
Voltage	3.6V ~ 34V
