| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
291 pcs
|
291 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Function | |
| Interface | |
| Motor Type | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Package Quantity | |
| Step Resolution | |
| Supplier Device Package | |
| Technology | |
| Voltage |
The Panasonic AN41908A-VB is a specialized motor driver IC designed for use in network and security cameras, particularly for dome-type camera applications requiring lens control. This single-chip solution integrates control and power stages, simplifying camera design and reducing PCB space.
Key electrical specifications include a supply voltage range of 2.7V to 5.5V, with a typical supply current of 10mA. The device can deliver an output current of up to 150mA typically and 250mA maximum. It operates with a serial interface and supports bipolar motor types with a step resolution from 1 to 1/256.

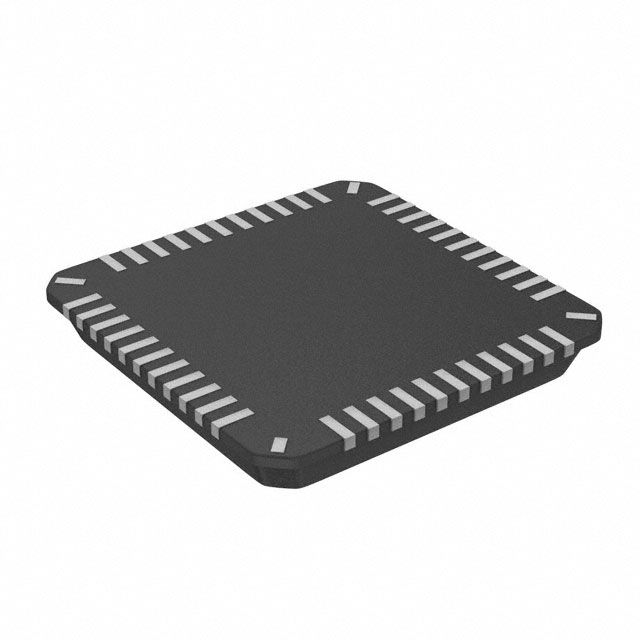

The AN41908A-VB is housed in a 44-QFN package with dimensions of 6mm x 6mm and a height of 0.9mm. It is designed for surface mounting. The operating temperature range is -20°C to 125°C (TJ), with a maximum power dissipation of 141.4mW. This integrated driver is suitable for applications demanding precise motor control and reduced acoustic noise, contributing to smaller and more efficient camera designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AN41908A-VB operates from a supply voltage of 2.7V to 5.5V.
The typical output current is 150mA, with a maximum output current of 250mA.
The AN41908A-VB is available in a 44-QFN package measuring 6.2mm x 6.2mm.
The operating temperature range is -20°C to 85°C.
The AN41908A-VB drives a bipolar stepper motor.
The AN41908A-VB uses a serial interface for control.
The step resolution ranges from 1 to 1/256.
