| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
136 pcs
|
136 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Head Height | |
| Head Style | |
| Length | |
| Material | |
| Thread Length |

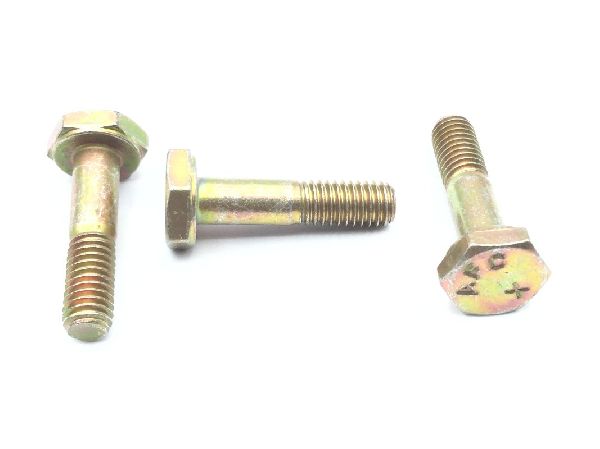

The AN3-6A is an Aeronautical Standard Machine Bolt from QPL, designed for various applications requiring reliable fastening. This bolt is constructed from steel and features a cadmium and chromate surface treatment for corrosion resistance, adhering to QQ-P-416 Type 2 Class 3 federal specifications. It has an undrilled shank and a finished hexagon head.
Key mechanical specifications include a fastener length of 0.781 inches, a grip length of 0.375 inches, and a thread length of 0.406 inches. The thread is a 10-32 UNF fine thread with a class of 3A and a right-hand direction. The head height ranges between 0.109 and 0.141 inches, with a width between flats measuring 0.365 to 0.377 inches. The minimum tensile strength is rated at 125,000 psi, and the hardness is between 26.0 and 32.0 Rockwell C.
This AN3 series bolt is supplied with manufacturer certifications and meets MIL-B-6812 military specifications for material. It is packaged in increments of 100 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AN3-6A bolt features a 10-32 UNF fine thread with a thread class of 3A.
The AN3-6A bolt is made of steel with a cadmium and chromate surface treatment.
The minimum tensile strength for the AN3-6A bolt is 125,000 psi.
The grip length of the AN3-6A bolt is 0.375 inches.
The fastener length of the AN3-6A bolt is 0.781 inches.
The standard package quantity for the AN3-6A bolt is 100 units.
