| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
211 pcs
|
211 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Head Height | |
| Head Style | |
| Length | |
| Material | |
| Thread Length | |
| Thread Size |

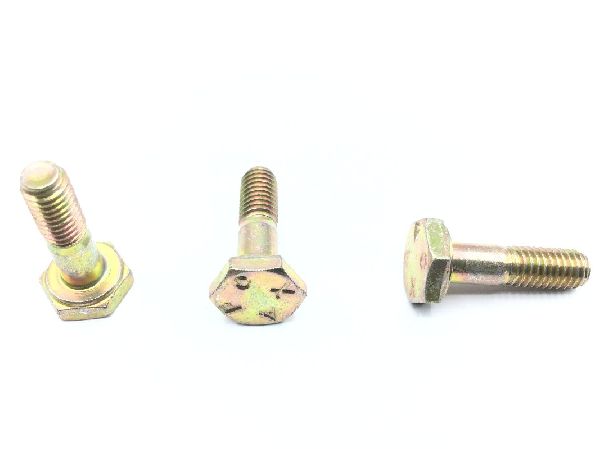

The Honeywell AN3-5A is an Aeronautical Standard Machine Bolt designed for demanding applications. It features a 0.656-inch fastener length and a 0.406-inch thread length, with a 10-32 UNF thread series.
Constructed from steel with a cadmium plating for corrosion resistance, this bolt meets Mil-b-6812 military specifications. It has a minimum tensile strength of 125,000 psi and a thread class of 3a. The head style is hexagon, with a head height between 0.109 and 0.141 inches and a width between flats of 0.365 to 0.377 inches.
This AN3 series bolt is suitable for various end applications including B-1 support equipment, aircraft, the TF-33 engine, Phoenix missile, and Harpoon systems. It is supplied with a finished head and an undrilled shank. The bolt is packaged in increments of 50 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The fastener length is 0.656 inches.
The thread size is 10 with a 32 TPI thread quantity per inch, conforming to the UNF (fine thread) series.
The bolt is made of steel with a cadmium surface treatment.
The minimum tensile strength is 125,000 pounds per square inch.
The grip length is 0.250 inches.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
