Mfr Part #:

AN250201-01H

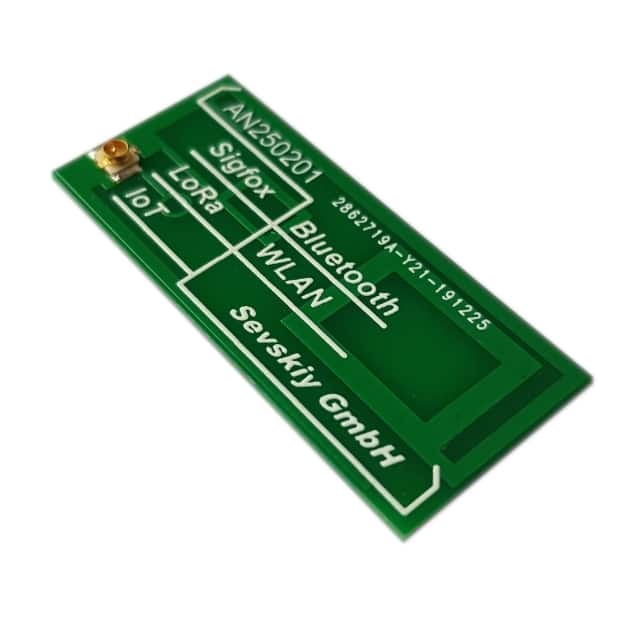

Name: AN250201-01H
Brand: Sevskiy GmbH
SKU: AN250201-01H

Mfr Name: Sevskiy GmbH

Description:

RF ANT 915MHZ/2.45GHZ/5GHZ PCB

Stock on Request

AN250201-01H Description

Short technical summary and product information.

RF ANT 915MHZ/2.45GHZ/5GHZ PCB

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Sevskiy GmbH
Antenna Type	PCB Trace
Applications	3G, Bluetooth, Cellular, GSM, IoT, ISM, Lora, Sigfox,Wi-Fi, Wi-Fi 6E
Frequency (Center	868MHz, 915MHz, 2.45GHz, 5.5GHz, 6.5GHz
Frequency Group	Wide Band
Frequency Range	860MHz ~ 925MHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz
Gain	1.1dBi, 1.3dBi, 2.3dBi, 4.2dBi, 4,6dBi
Height (Max)	0.039" (1.00mm)
Mounting Type	Connector Mount
Number of Bands	5
Power	10 W
RF Family	Bluetooth, General ISM, WiFi
Return Loss	-10dB, -6dB, -10dB, -10dB, -6dB
Termination	U.FL (UMCC), IPEX MHF1
VSWR	2, 3, 2, 2, 3
