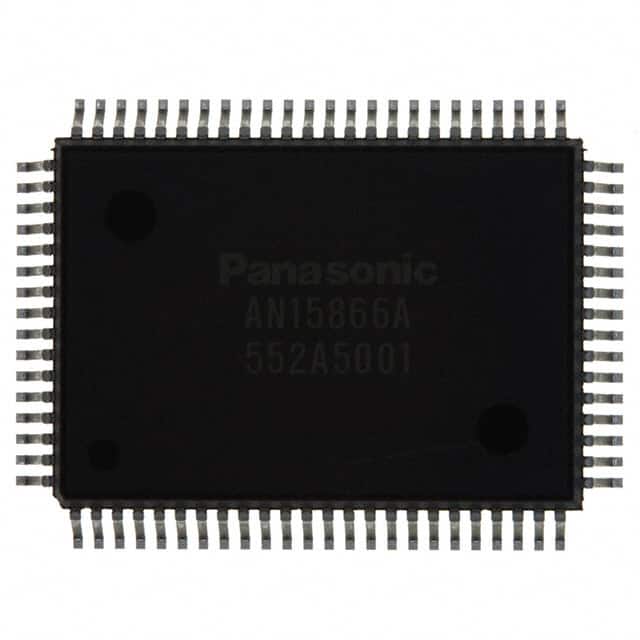

The AN15866A-VT is a video switch IC designed for video signal routing applications. It features 17 inputs and 5 outputs, allowing flexible switching of multiple video sources. The device is controlled via an I2C bus interface, enabling easy integration with microcontrollers and digital control systems.
Key specifications include a supply voltage range of 8.5V to 9.5V, an operating temperature range of -20°C to 75°C, and a maximum power dissipation of 725 mW. The IC is housed in a surface-mount 80-QFP package with a supplier device package of 80-QFH (14x20).
This component is suitable for video applications such as color TVs and other video switching equipment. The I2C control interface simplifies system design by reducing the number of control lines needed.
The supply voltage range is 8.5V to 9.5V.
It has 17 inputs and 5 outputs.
The operating temperature range is -20°C to 75°C.
It comes in a surface-mount 80-QFP package with supplier device package 80-QFH (14x20).
Yes, it is listed as RoHS3 compliant.
It uses an I2C bus interface.
The maximum power dissipation is 725 mW at Ta=75°C when mounted on a PCB.
