| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

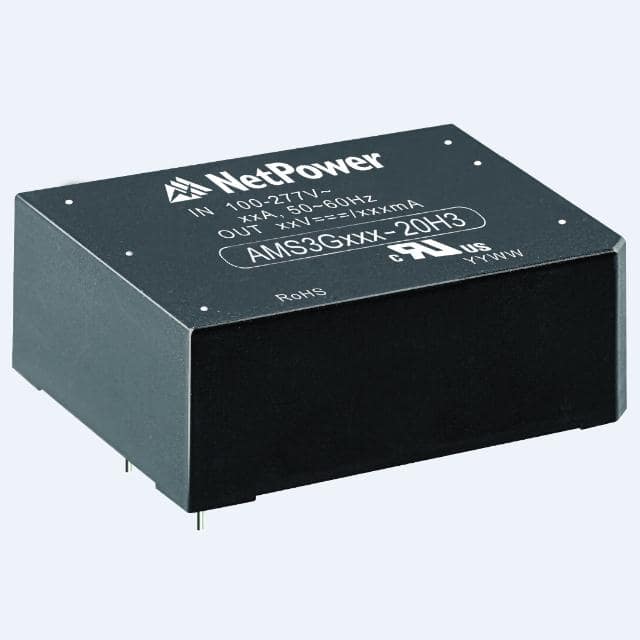

This NetPower AMS3G150-20H3 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers a power output of 20W with a single output of 1.3A.
The converter operates with a wide input voltage range of 85 to 305 VAC or 100 to 430 VDC, offering flexibility in power sourcing. It boasts an efficiency of 84% and operates within a temperature range of -40°C to 70°C, with derating at higher temperatures.
Designed for easy integration, the AMS3G150-20H3 features Through Hole mounting and comes in a 9-DIP Module package with 6 leads. Its dimensions are 70.0mm in length, 48.0mm in width, and 23.5mm in height. The unit is CE and cURus approved, indicating compliance with relevant safety standards.
The input voltage range is 85 ~ 305 VAC or 100 ~ 430 VDC.
The power output is 20W.
The output current is 1.3A.
The operating temperature range is -40°C to 70°C, with derating.
It is mounted Through Hole.
The dimensions are 70.0mm x 48.0mm x 23.5mm.
