| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

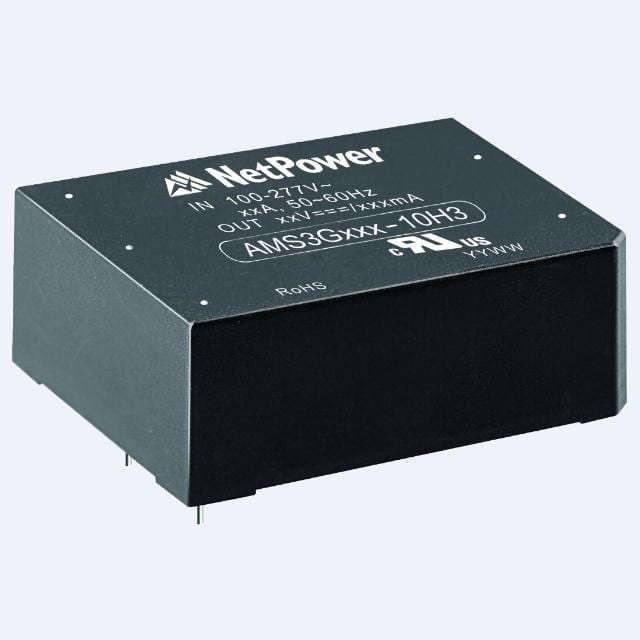

This NetPower AMS3G150-10H3 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a 10W power output with a current rating of 700mA and operates within a wide input voltage range of 85-305 VAC or 100-430 VDC.
The converter features a high efficiency of 81% and a single output. It is designed for through-hole mounting and comes in a 9-DIP Module package with 6 leads. The operating temperature range is -40°C to 70°C, with derating applied.
Key specifications include dimensions of 55.0mm x 45.0mm x 21.0mm. The unit is approved by CE and cURus agencies, indicating compliance with relevant safety and performance standards.
The AMS3G150-10H3 provides a single output of 15V at 700mA, delivering 10W of power.
The converter accepts 85-305 VAC or 100-430 VDC input.
The operating temperature range is -40°C to 70°C with derating.
The AMS3G150-10H3 has an efficiency of 81%.
It uses a 9-DIP module with 6 leads and through-hole mounting.
The dimensions are 55.0mm length, 45.0mm width, and 21.0mm height.
