| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

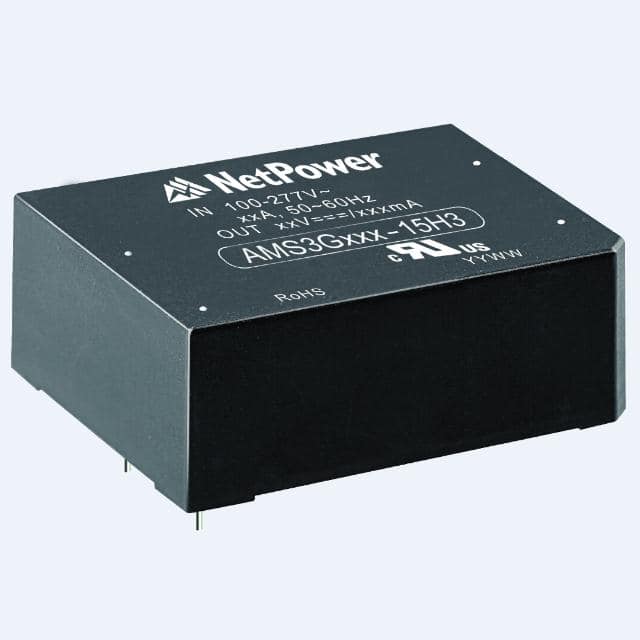

This NetPower AMS3G050-15H3 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single output with a power rating of 14W and a current capacity of 2.8A.
The converter accepts a broad input voltage range of 85 to 305 VAC or 100 to 430 VDC, making it suitable for various power environments. It features a high efficiency of 78% and operates within a temperature range of -40°C to 70°C, with derating at higher temperatures.
Mechanically, the unit has dimensions of 62.0mm in length, 45.0mm in width, and 22.5mm in height. It is designed for through-hole mounting and comes in a 9-DIP Module package with 6 leads.
Compliance includes CE and cURus agency approvals. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level is 1 Unlimited.
The input voltage range is 85 to 305 VAC or 100 to 430 VDC.
The output voltage is 5V DC at 14W.
The efficiency is 78%.
The operating temperature range is -40°C to 70°C with derating.
The package is a 9-DIP Module with 6 leads, and the mounting type is through hole.
It is approved by CE and cURus.
It has 1 output.
