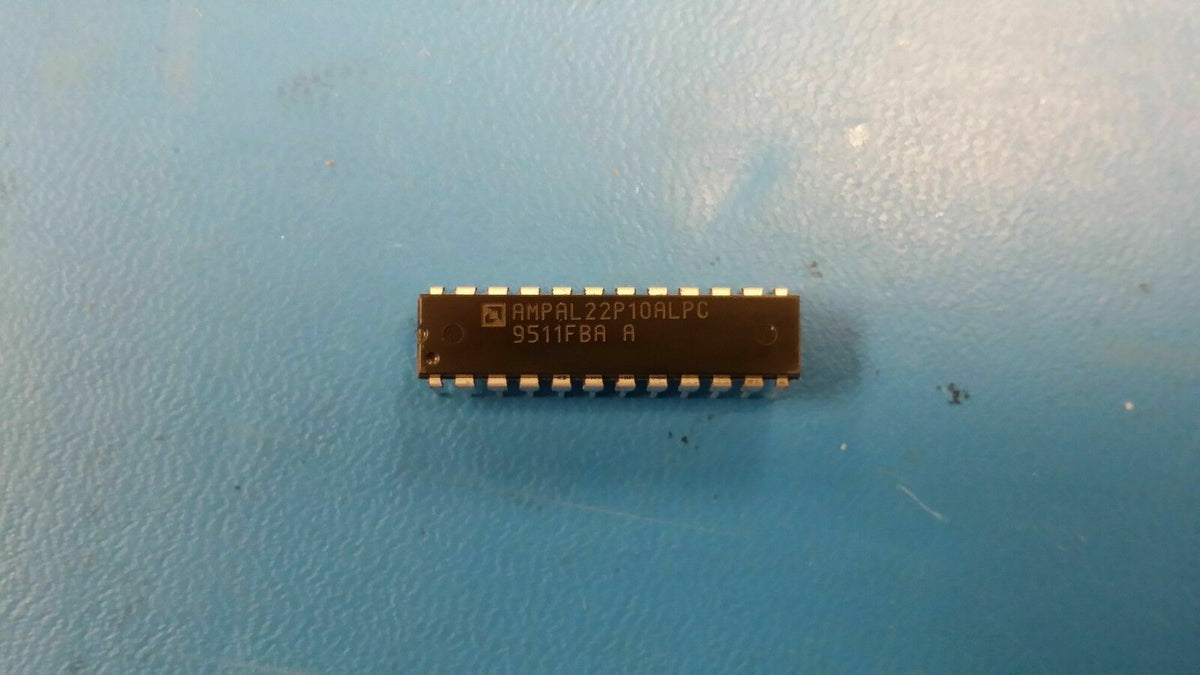

AMPAL22P10ALPC The Advanced Micro Devices AMPAL22P10ALPC is an OT PLD with a 25ns propagation delay and a 5V nominal supply voltage. It comes in a DIP-24 package.
Mfr Part #:

AMPAL22P10ALPC

Available from 1 distributors
Mfr Name: Advanced Micro Devices
Advanced Micro Devices
The Advanced Micro Devices AMPAL22P10ALPC is an OT PLD with a 25ns propagation delay and a 5V nominal supply voltage. It comes in a DIP-24 package.
✓ Total Stock: 10 pcs
$ Price Range: $1.93

AMPAL22P10ALPC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AMPAL22P10ALPC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Length
Mounting Type
Number of Inputs
Number of Outputs
Output Function
Propagation Delay
Technology
Width
View Similar Products (0)

AMPAL22P10ALPC Description

Short technical summary and product information.

The Advanced Micro Devices AMPAL22P10ALPC is an OT PLD (One-Time Programmable Logic Device) designed for digital logic applications. It operates with a nominal supply voltage of 5V, with a minimum of 4.75V and a maximum of 5.25V.



Key electrical characteristics include a propagation delay of 25ns and a PAL-type architecture. The device offers 22 inputs and 10 outputs, with 90 product terms. It operates within a temperature range of 0°C to 75°C.



This component is housed in a 24-pin DIP (Dual In-line Package) with through-hole mounting. The package dimensions are approximately 30.734mm in length and 7.62mm in width, with a maximum seated height of 5.08mm and a terminal pitch of 2.54mm.

AMPAL22P10ALPC Quick Information

Product Type: Programmable Logic IC
Canonical Name: Advanced Micro Devices AMPAL22P10ALPC Programmable Logic Device
Subcategory: OT PLD

AMPAL22P10ALPC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AMPAL22P10ALPC Estimated Pricing

Qty Low High
1+ $1.93 $1.93

Estimated market price range - modelled values for guidance only, not live distributor offers.

AMPAL22P10ALPC Features

  • 25ns propagation delay.
  • 5V nominal supply voltage.
  • PAL-type architecture.
  • 22 inputs, 10 outputs.
  • DIP-24 package for through-hole mounting.

AMPAL22P10ALPC Applications

  • Suitable for programmable logic device applications.
  • Used in digital circuit design and prototyping.
  • Ideal for custom logic implementation in embedded systems.
  • Applicable in industrial automation control systems.
  • Suitable for educational and development purposes.

AMPAL22P10ALPC FAQs

6 frequently asked questions generated from this part’s specifications.
What is the propagation delay of the AMPAL22P10ALPC?

The propagation delay is 25 ns.

What is the operating supply voltage for the AMPAL22P10ALPC?

The supply voltage ranges from 4.75 V to 5.25 V, with a nominal value of 5 V.

What is the operating temperature range for this PLD?

The operating temperature range is from 0 °C to 75 °C.

What package type is the AMPAL22P10ALPC supplied in?

It is supplied in a 24-pin DIP package.

What is the number of inputs and outputs on the AMPAL22P10ALPC?

The device has 22 inputs and 10 outputs.

What is the architecture of the AMPAL22P10ALPC?

The architecture is PAL-TYPE.
