| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage |

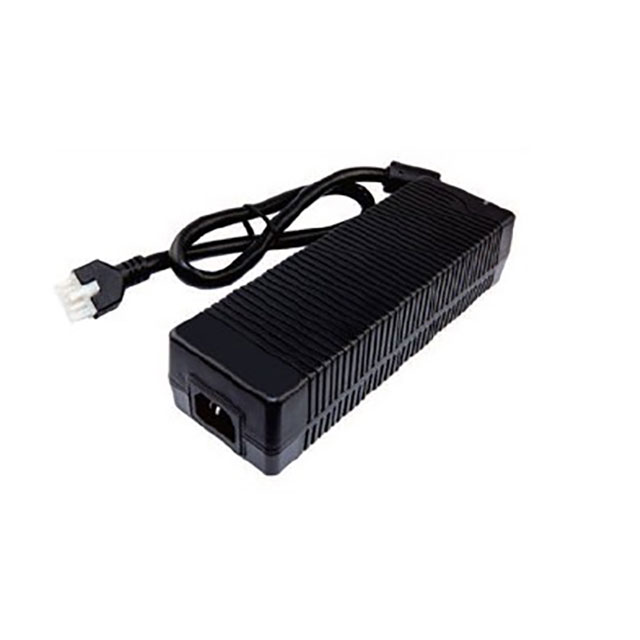

The Astrodyne TDI AMP2511-09 is a 250W AC/DC external desktop adapter designed for medical applications. It provides a stable 30V output at a maximum current of 8.32A, meeting Level VI efficiency standards.
The adapter operates with an input voltage range of 90 to 264 VAC and features an IEC 320-C14 input connector. Its dimensions are 199.9mm x 65.0mm x 45.0mm, making it a compact Class I desktop unit. The output connector is a Rectangular, 10 Position type. The cord length is 24 inches (609.6mm), and the input cord is sold separately.
This adapter is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1. It is approved by agencies including CB, CE, cURus, FCC, and TUV, ensuring broad compliance for international use. The no-load power consumption is a maximum of 210mW.
The AMP2511-09 adapter has an output voltage of 30V and a maximum output current of 8.32A.
The AMP2511-09 adapter has a power rating of 250W.
The AMP2511-09 adapter accepts a universal input voltage range of 90 to 264 VAC.
The AMP2511-09 adapter meets Level VI efficiency.
The operating temperature range for the AMP2511-09 adapter is -10°C to 70°C.
The AMP2511-09 adapter is a Desktop (Class I) form factor.
The AMP2511-09 adapter is RoHS3 Compliant.
