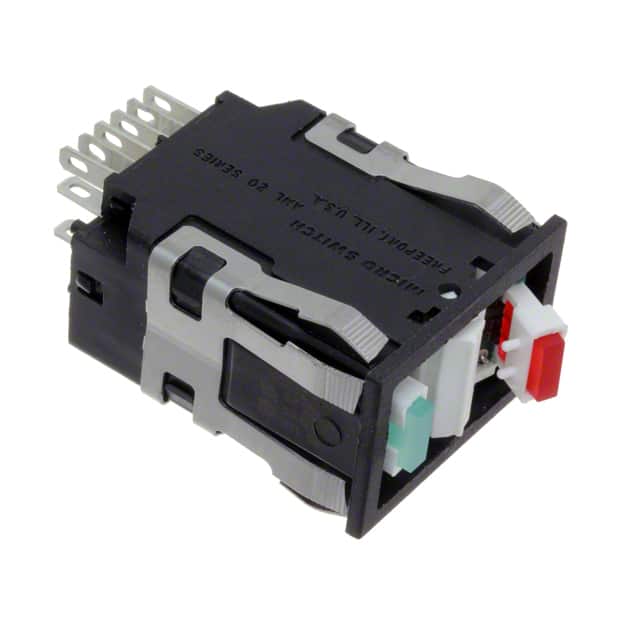

AML26GBF2CA02RG The Honeywell AML26GBF2CA02RG is a DPDT rocker switch designed for panel mounting. It features solder or quick connect termination and LED illumination.
Mfr Part #:

AML26GBF2CA02RG

Available from 1 distributors
Mfr Name: Honeywell
Honeywell
The Honeywell AML26GBF2CA02RG is a DPDT rocker switch designed for panel mounting. It features solder or quick connect termination and LED illumination.
✓ Total Stock: 25 pcs
$ Price Range: $0.75

AML26GBF2CA02RG Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request 742 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AML26GBF2CA02RG Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Circuit
Current Rating (Amps)
Illumination Type, Color
Illumination Voltage (Nominal)
Mounting Type
Panel Cutout Dimensions
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

AML26GBF2CA02RG Description

Short technical summary and product information.

The Honeywell AML26GBF2CA02RG is a Double Pole Double Throw (DPDT) rocker switch from the AML26 Series. It is designed for panel mounting with a snap-in feature and offers termination via solder or 0.110" (2.8mm) quick connect terminals.



This illuminated switch has a nominal voltage rating of 24V and can handle 3A AC or 2A DC. The illumination type is LED, available in Green/Red, with a nominal voltage of 24VDC. The actuator type is an actuator arm, requiring a separate cap, and its marking varies by cap selection. The switch function is On-Mom.



Panel cutout dimensions are rectangular, measuring 28.98mm x 19.05mm. The switch is RoHS3 compliant and has an MSL rating of 1 Unlimited.

AML26GBF2CA02RG Quick Information

Product Type: Rocker Switch
Series: AML26
Canonical Name: Honeywell AML26GBF2CA02RG DPDT Rocker Switch
Subcategory: Manual Switches

AML26GBF2CA02RG Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AML26GBF2CA02RG Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

AML26GBF2CA02RG Features

  • DPDT circuit configuration for versatile switching.
  • Rated for 3A AC and 2A DC current.
  • Panel mount with snap-in installation.
  • LED illumination in Green/Red.
  • Solder or quick connect termination.

AML26GBF2CA02RG Applications

  • Ideal for control panel interfaces.
  • Suitable for industrial equipment.
  • Used in electronic test equipment.
  • Applicable in custom machinery.

AML26GBF2CA02RG FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the AML26GBF2CA02RG rocker switch?

The AML26GBF2CA02RG rocker switch has a current rating of 3A AC and 2A DC.

What is the voltage rating for this Honeywell rocker switch?

The voltage rating for the AML26GBF2CA02RG is 24V.

Does the AML26GBF2CA02RG feature illumination?

Yes, the AML26GBF2CA02RG features LED illumination in Green/Red with a nominal voltage of 24VDC.

What type of mounting does the AML26GBF2CA02RG support?

The AML26GBF2CA02RG supports panel mount with a snap-in installation.

What are the termination options for the AML26GBF2CA02RG?

The termination options for the AML26GBF2CA02RG are solder or quick connect - 0.110" (2.8mm).

What is the RoHS status of the AML26GBF2CA02RG?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.
