| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Input Voltage | |
| Mounting Type | |
| Operating Temperature |

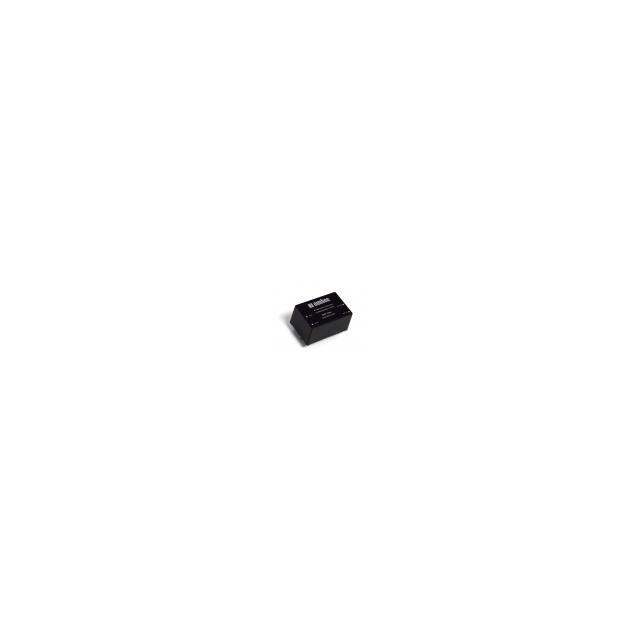

The Aimtec AMFE305150-105 is an encapsulated AC EMC Filter module designed to protect AC-DC converters from power surges and reduce noise interference. It features a universal input voltage range of 85-305 VAC and operates across a wide temperature range of -40°C to +85°C.
This filter assists AC-DC converters in meeting the Surge level of IEC/EN61000-4-5 standards, offering up to ±4KV surge suppression on L-N and ±6KV on L-G. It also meets the EMI requirement of CISPR32/EN55032 Class B standards, providing up to 30dB attenuation from 150kHz to 1GHz. The high isolation voltage of 2000VAC ensures safety in demanding applications.
Available in various mounting options including PCB mountable, chassis mount (-ST suffix), and DIN-Rail mount (-STD suffix), the AMFE305150-105 is suitable for applications in Power Grid, Industrial, Telecom, and Instrumentation sectors where noise sensitivity is a concern.
Key specifications include a maximum output current of 1.5A, a compact package size for PCB mountable models (33.70 x 22.20 x 18.00mm), and a case material made of heat-resistant plastic with UL 94V-0 flammability rating.
The input voltage range is 85 to 305 VAC.
The operating temperature range is -40 °C to +85 °C.
It offers up to ±4KV surge suppression on L-N and ±6KV on L-G.
It meets CISPR32/EN55032 Class B EMI standards.
The isolation voltage is 2000 VAC.
The maximum current rating is 1.5 A.
