| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

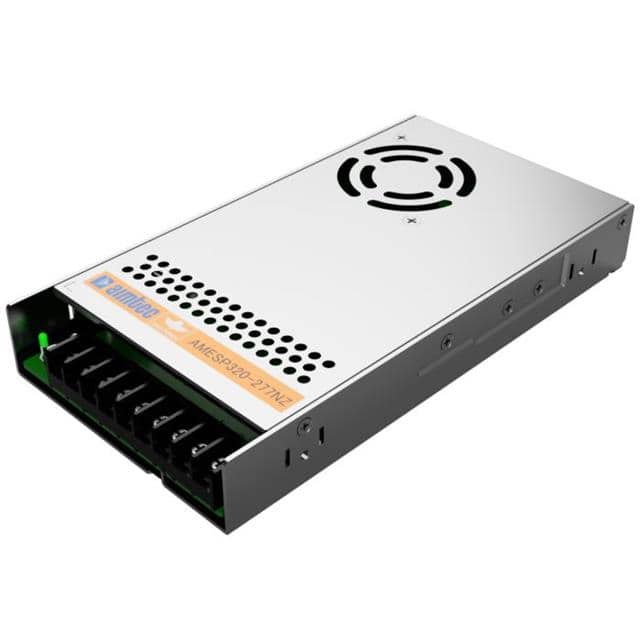

The Aimtec AMESP320-NZ series AC-DC converter, specifically the AMESP320-48S277NZ-Q model, offers a robust solution for power conversion needs. This enclosed unit provides a single 48V output with a maximum power of 322W, suitable for demanding applications.
Key electrical specifications include a wide universal input voltage range of 85-264 VAC and 120-373 VDC, ensuring compatibility across different power grids. It boasts an efficiency of 89% and features active power factor correction (PFC). The converter provides a high isolation voltage of 4 kV for enhanced system safety and reliability.
Designed for industrial and commercial use, this AC-DC converter operates within a temperature range of -30°C to 70°C with derating. It is chassis mounted and comes with conformal coating for added protection. Protection features include output short circuit, over-current, over-voltage, and over-temperature protection.
Applications for this series include power grid, industrial controls, telecommunications, and instrumentation. The unit meets safety standards such as 60335-1 and 62368-1.
The output voltage is 48V with a maximum output current of 6.7A, providing 322W of output power.
The input voltage range is 85-264 VAC (47-63 Hz) or 120-373 VDC.
The operating temperature range is -30°C to 70°C with derating.
The efficiency is 89%.
The isolation voltage is 4 kV.
The dimensions are 214.9mm L x 115.1mm W x 30.0mm H (8.46" x 4.53" x 1.18").
The converter is enclosed with conformal coating and is chassis mount.
