| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Isolation | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

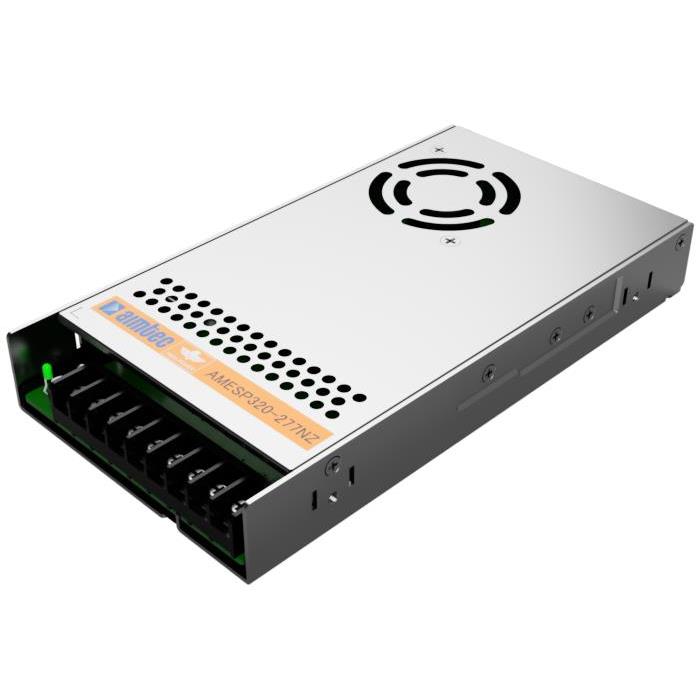

The Aimtec AMESP320-NZ series AC-DC converter, specifically the AMESP320-12S277NZ-P model, is designed for high-power applications requiring a reliable 12V output. This enclosed unit delivers up to 320.4W of power and accepts a universal input voltage range of 85-264 VAC or 120-373 VDC.
Key electrical specifications include a maximum output current of 26.7A, an adjustable output voltage range of 10.0-13.2V, and high isolation of 4kV. The converter boasts an efficiency of up to 86.5% and features active power factor correction (PFC > 0.95) for improved performance. Protection features such as output short circuit, over-current, over-voltage, and over-temperature protection are standard.
Designed for industrial and commercial applications, the AMESP320-12S277NZ-P operates within a temperature range of -30°C to 70°C with derating. Its chassis mount type and dimensions of 214.9mm x 115.1mm x 30.0mm make it suitable for integration into various system designs. Compliance with standards like 60335-1 and 62368-1 is noted.
85-264 VAC or 120-373 VDC.
Enclosed, chassis mount.
-30°C to 50°C at full power, with derating up to 70°C.
26.7A.
4000 VAC.
214.9mm x 115.1mm x 30.0mm.
60335-1 and 62368-1.
