AMES35-15S277NZ
Aimtec
The Aimtec AMES35-15S277NZ is a 36W AC/DC converter with an adjustable output and 86% efficiency. It is designed for chassis mounting.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

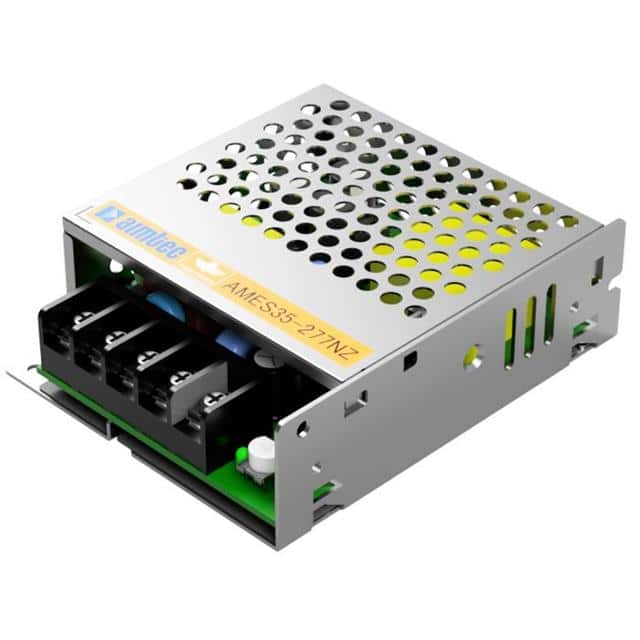

This Aimtec AMES35-15S277NZ-P is an enclosed AC/DC converter designed for reliable power conversion in various applications. It provides a single 15V output with a maximum current of 2.4A, delivering a total power of 36W. The converter operates with an efficiency of 86% and features an adjustable output.
Designed for easy integration, it utilizes a chassis mount type and has dimensions of 99.0mm x 82.0mm x 30.0mm. The input voltage range is broad, accepting 85 ~ 305 VAC or 120 ~ 430 VDC. It offers an isolation voltage of 4 kV and operates within a temperature range of -30°C to 70°C with derating.
Compliance is met with standards such as 60335-1 and 62368-1, and it holds approvals from agencies including CB, CE, EN, IEC, and UL. Applications include household appliances and ITE (Commercial) equipment. The RoHS status is RoHS3 Compliant.
The output voltage is 15V.
The maximum output current is 2.4A.
The power rating is 36W.
The operating temperature range is -30°C to 70°C (With Derating).
It uses chassis mount.
The dimensions are 99.0mm x 82.0mm x 30.0mm.
It complies with standards 60335-1 and 62368-1.
